Item No: 016056

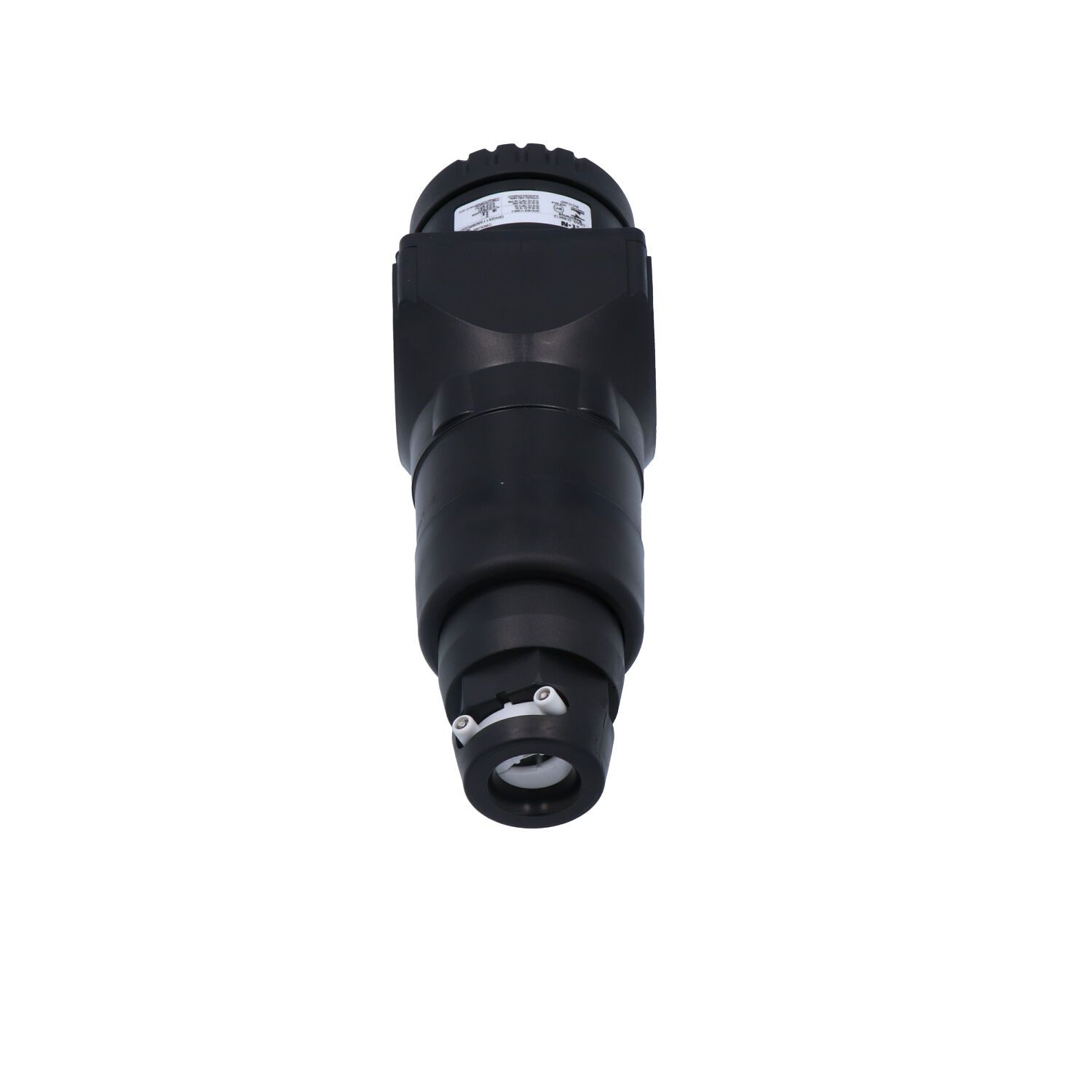

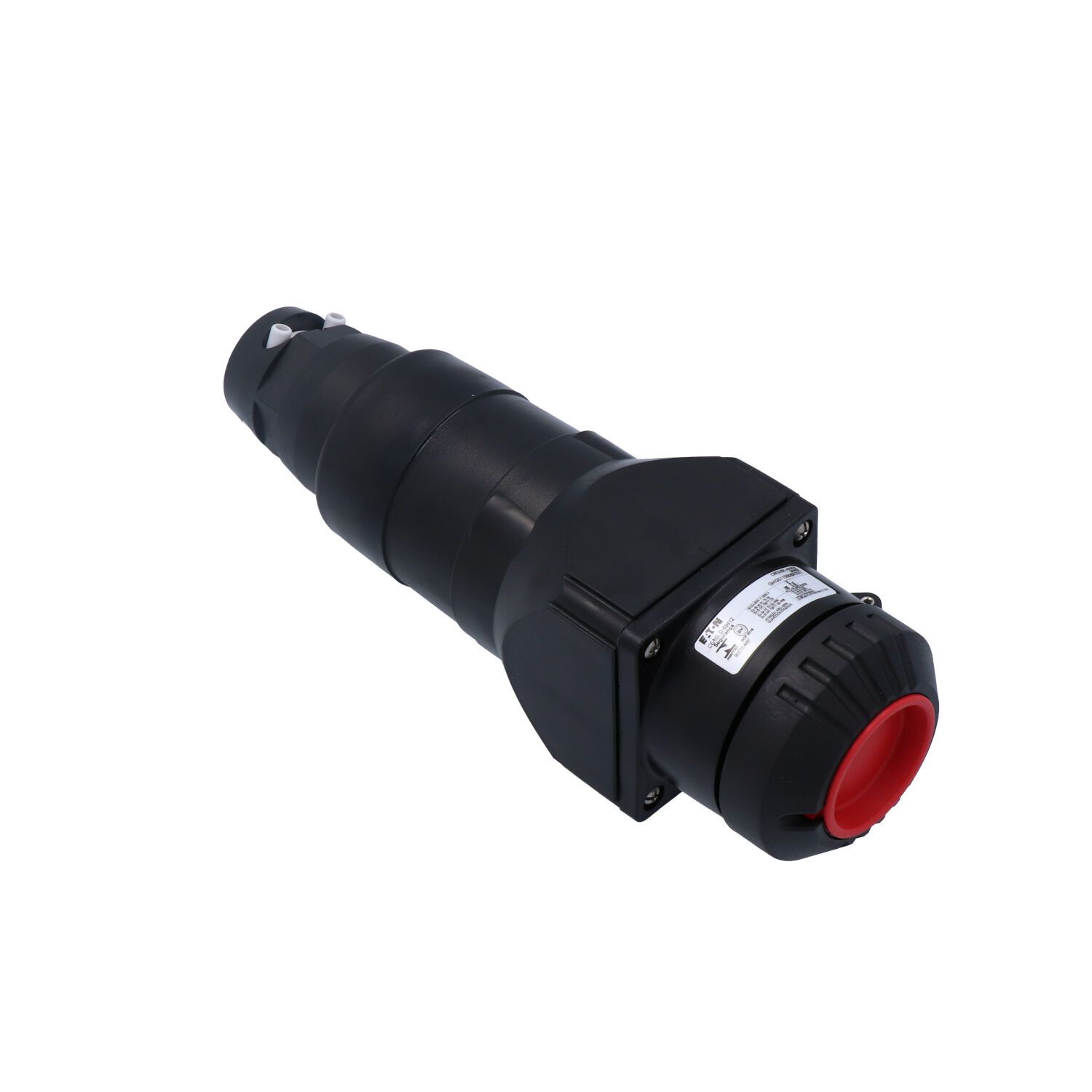

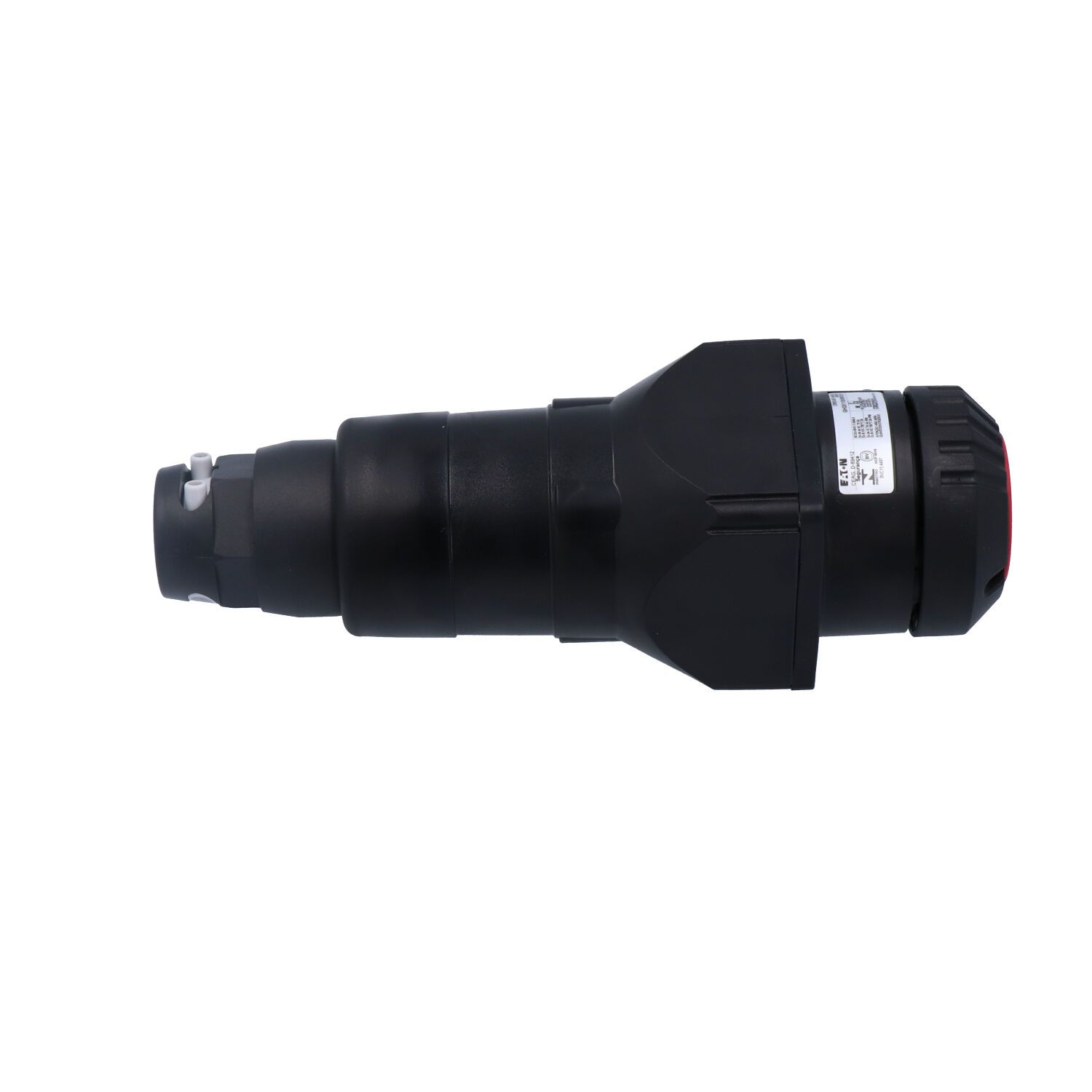

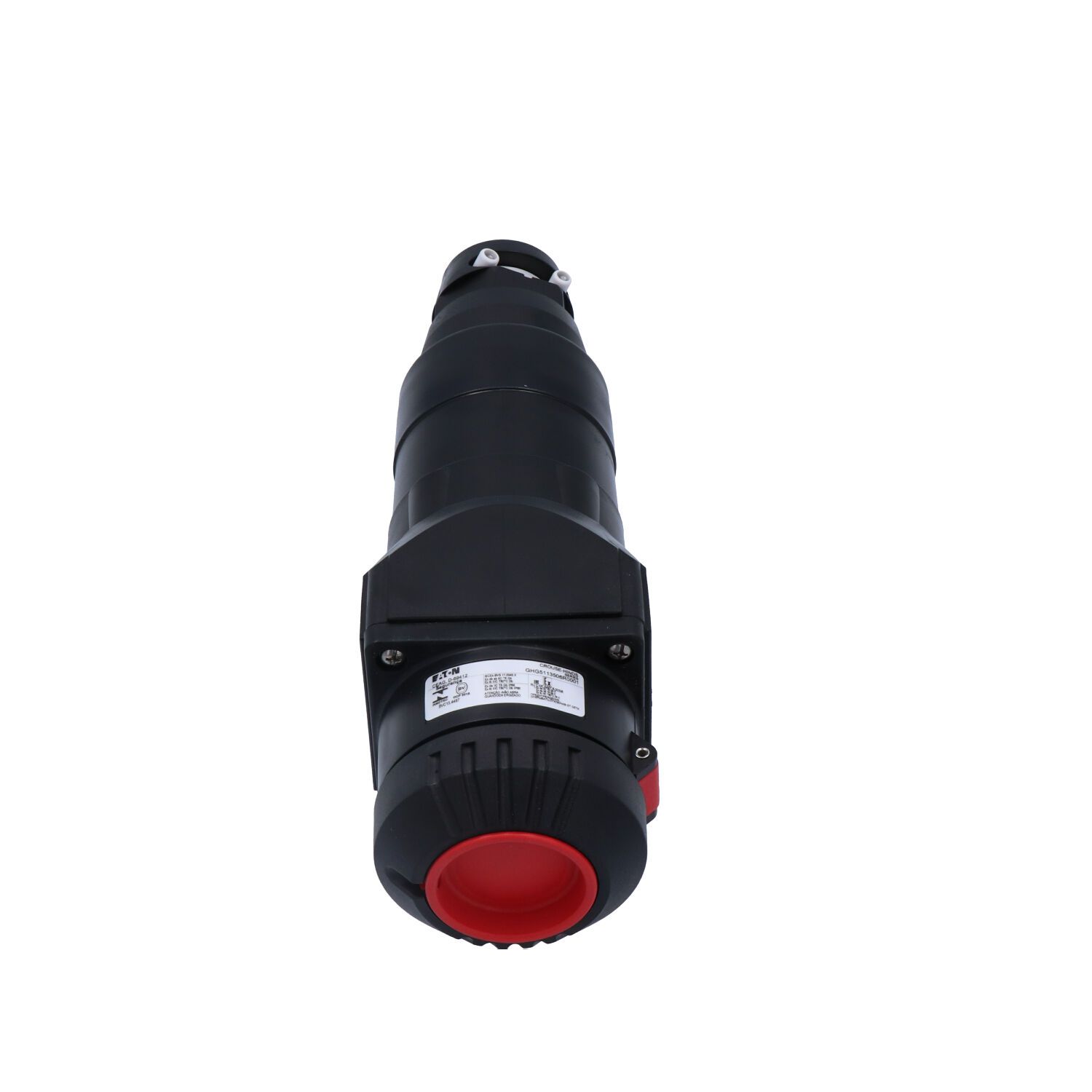

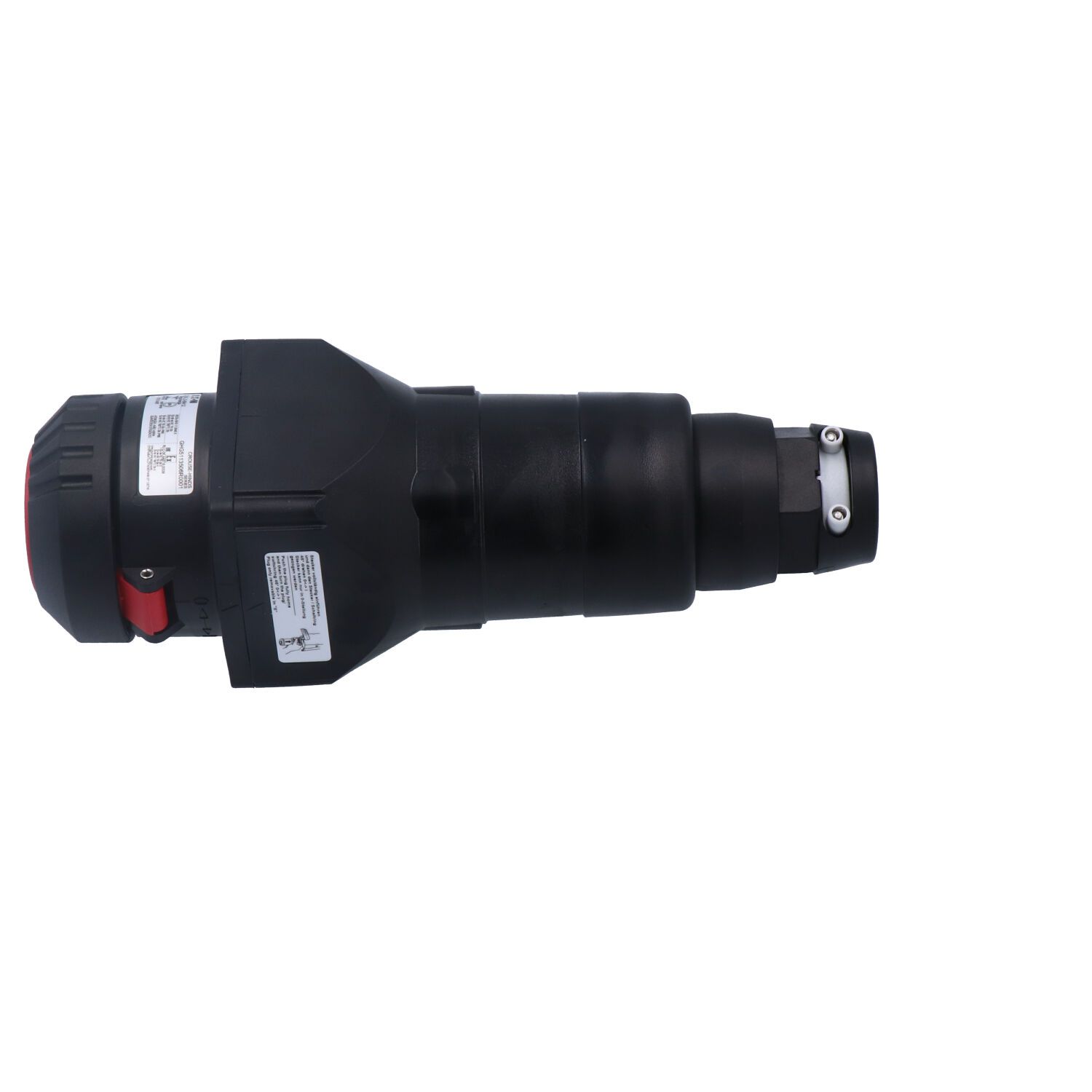

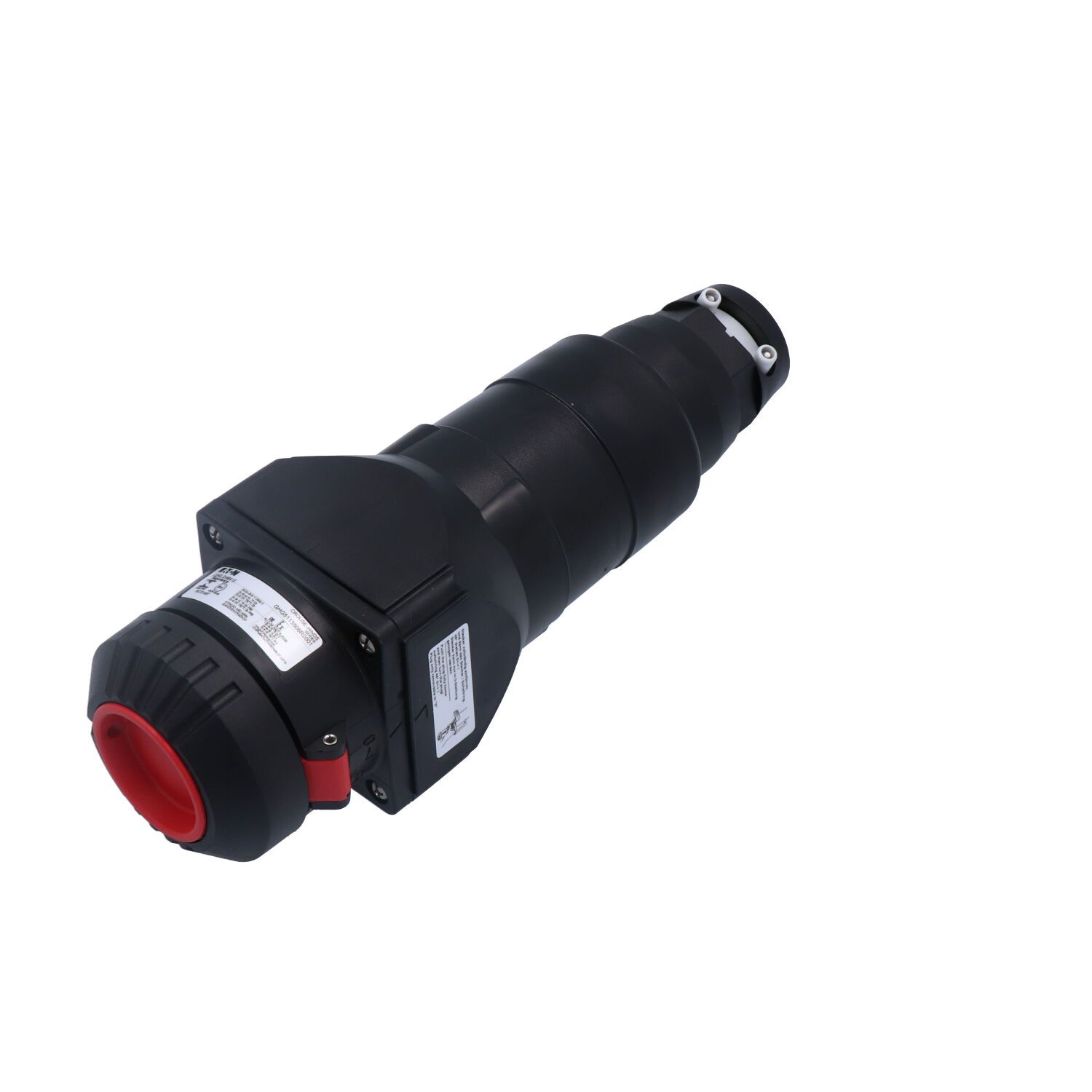

Connector Ex CEAG IP66

400A/16A/3L+N+PE/6h zones 1, 2, 21, 22

Please log in to be able to use the shopping cart and then complete orders.

Log in

Technical data

Protection rating
IP66
Material
polyamide
Amperage
16 A
Number of poles
3L+N+PE
Voltage
380-415V
EC-type examination certificate
PTB 99 ATEX 1039
Schaltvermögen AC-3
690VAC, 16A/32A
Directive 94/9/EC
II 2G Ex de IIC T6 + II 2D Ex tD A21 IP66 T80°C
Nominal current
max. 16A
Reference voltage
max. 690V
Zone(s) Ex
1, 2 + 21, 22
Type
CEAG
