Item No: 269476

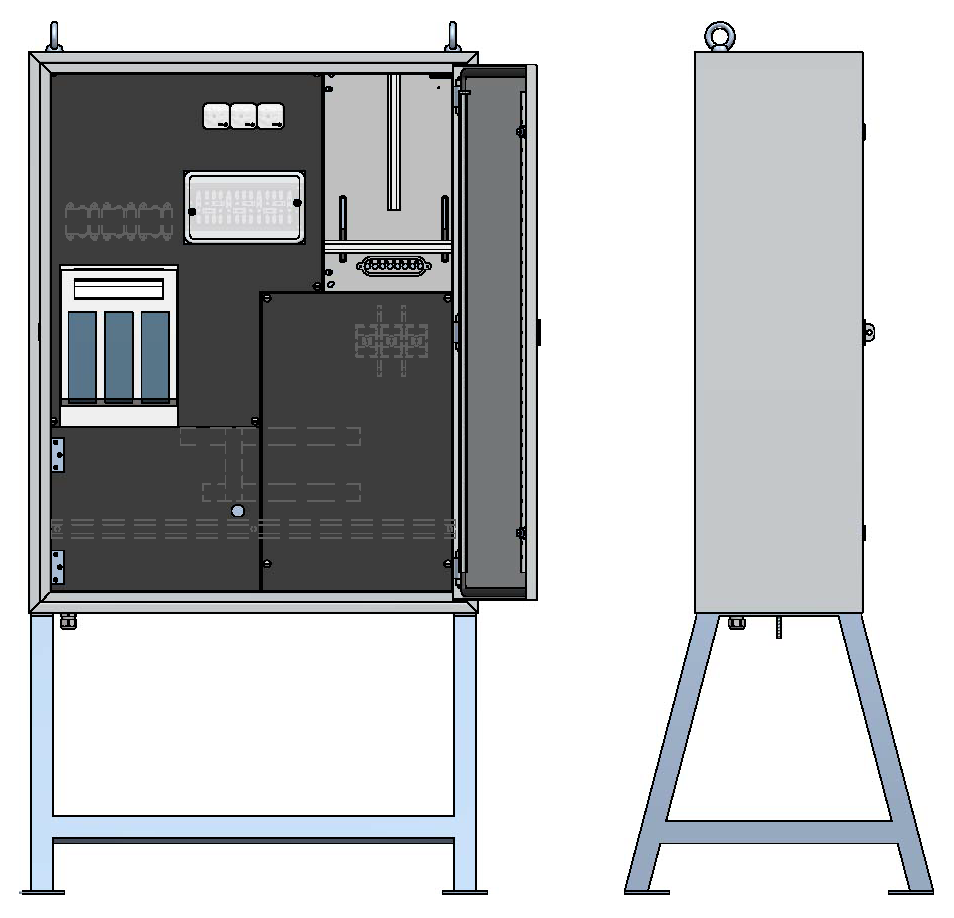

Construction site main cabinet 400A

sheet steel housing on stand, converters and test terminals must be supplied

Please log in to be able to use the shopping cart and then complete orders.

Technical data

Amperage: 400 A
Case material: sheet steel
Case colour: light grey
Width: 800 mm
Height: 1000 mm
Depth: 300 mm
Protection rating: IP54
Input of cable gland(s): packing set 55-65mm
Additional equipment: 2 openings below with strip brush
square stand, hot-dip galvanised
2 transport eyelets
diagram pocket
Locking: 2x double-bit
1x locking device for grilled door lock
