Item No:
143824

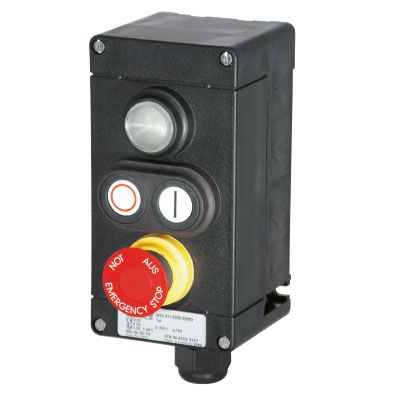

Ex-Befehlsgeber Leuchte-Drucktaster
NOT-AUS, PA IP66, 16A/250V, 1SIL/1S+1Ö
1xM25 unten, Zonen 1, 2, 21, 22
Technical data
- Voltage
- 250 V
- Reference voltage
- 690VAC
- Nominal current
-
16A (voltage-dependent)
- Allowable ambient temperature
-
-20°C to +40°C
- Protection rating
- IP66
- Protection class
- I
- Case material
- polyamide
- Width
- 85 mm
- Height
- 165 mm
- Depth
- 77.5 mm
- Weight
- 0.8 kg
- Contacts
-
1SIL/1NC+1NO/1NC+1NO
- Cable entry
-
1xM25 for cable ø8-17mm
- Zone(s) Ex
- 1, 2 + 21, 22
- EC-type examination certificate
- PTB 00 ATEX 3117
- Directive 94/9/EC
- II 2G Ex ed ib m IIC T6 + II 2D Ex tD A21 IP66 T80°C
- Additional equipment
-
Emergency shut-off
