Item No:
143858

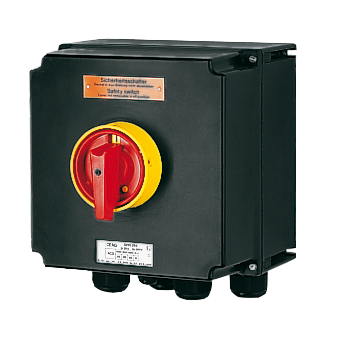

Ex-Sicherheitsschalter unmittelbar
PA IP66, 40A 3P, NOT-AUS, 1xM25/2xM50 unten
Zonen 1, 2, 21, 22
Technical data
- Reference voltage
- max. 690V, 50/60Hz
- Nominal current
- max. 80A
- Number of poles
- 3
- Allowable ambient temperature
-
-20°C to +40°C
- Protection rating
- IP66
- Protection class
- I
- Case material
- glass fibre re-inforced polyester
- Width
- 271 mm
- Height
- 271 mm
- Depth
- 211 mm
- Weight
- 6.5 kg
- Cable entry
- 1xM25 (8-17mm), 2xM50 (21-35mm)
- Zone(s) Ex
- 1, 2 + 21, 22
- EC-type examination certificate
- PTB 00 ATEX 1091
- Directive 94/9/EC
- II 2G Ex ed IIC T6 + II 2D Ex tD A21 IP66 T80°C
- Input of cable gland(s)
-
- M25
- M50
- Functions
-
Emergency shut-off
