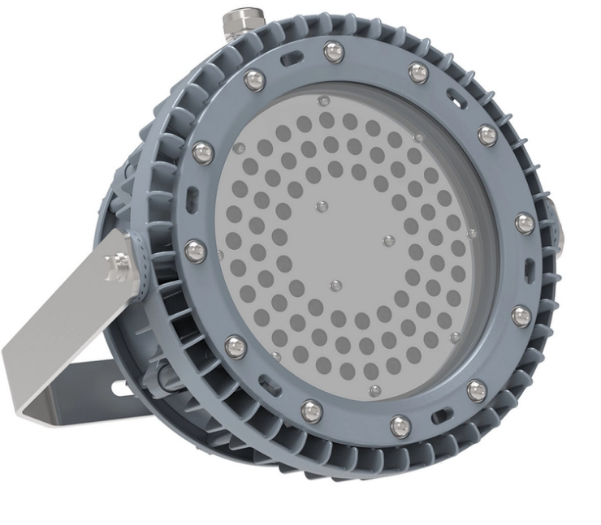

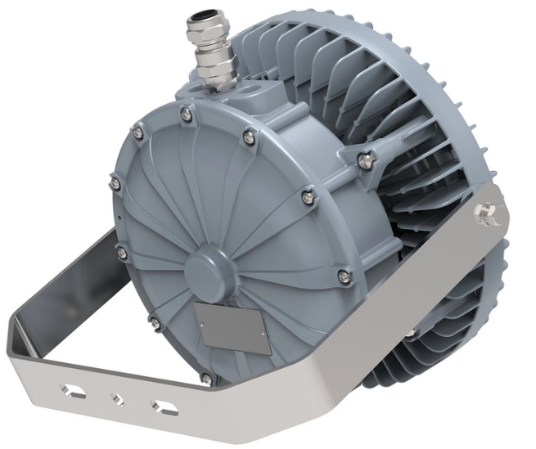

Item No: 230130

FlutLED Ex 150W/230VAC,

Spot 120°, 5'000K, IP66, zones 1, 2, 21, 22

Technical data

Input voltage: 100-277VAC
Light output: 22'050 lm
Performance: 150 W
Light efficiency: 140 lm/W
Protezione da sovratensione: 5kV
Frequency: 50/60Hz
Colour temperature: 5000 K
Temperature range: -40°C to +55°C
Operating life LED: >50'000h
Protection rating: IP66
Case material: Aluminum with anticorrosive paint

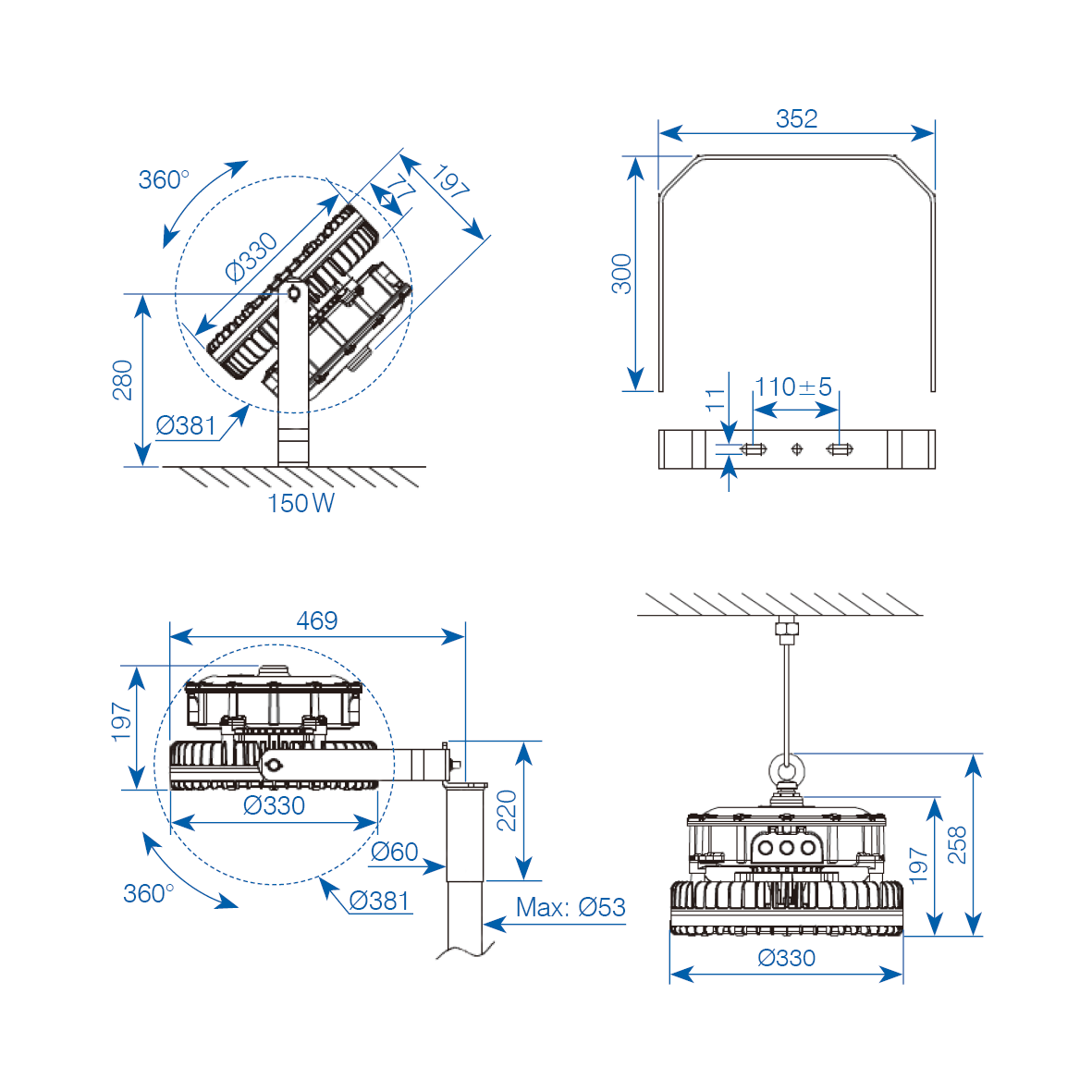

Diameter: 330 mm
Depth: 197 mm
Weight: 11 kg
Zone(s) Ex: 1, 2 + 21, 22
Identification: II 2G Ex db IIC T4/T5 Gb, II 2D Ex tb IIIC T115˚C/105°/T95˚C Db
Characteristics: strong light output
shock and vibration resistant
robust aluminum housing with anticorrosive paint
tempered glass windscreen
optimum luminous intensity distribution for different applications
Through-wiring possible
Product properties: With its excellent light power this Explosion-proof LED floodlight is suitable for oil refineries, power and chemicals plants, offshore oil platforms, fire fighting, civil protection as well as stadium lighting.

Item No: 230131

(mandatory accessory)

Item No: 230132

Item No: 230133

for FlutLED Ex 150W
