Item No: 070233

Hard rubber junction box type 2516,

coloured grey, 3x cable glands M25x1.5, terminal 5x10mm²

Technical data

Input of cable gland(s): M25
Input: 3xM25
For cable diameter till max.: 5 x 25mm²
Terminal: 5 x 10mm²
Case colour: light grey
Case material: solid rubber
Characteristics hard rubber: Hard Rubber:
fully insulated
impact resistant
UV resistant
halogen-free
aging and temperature resistance
oil-and acid-resistant
fire resistant
self extinguishing
good chemical resistance
Protection rating: IP65
Fixation: 4 internal assembly channels

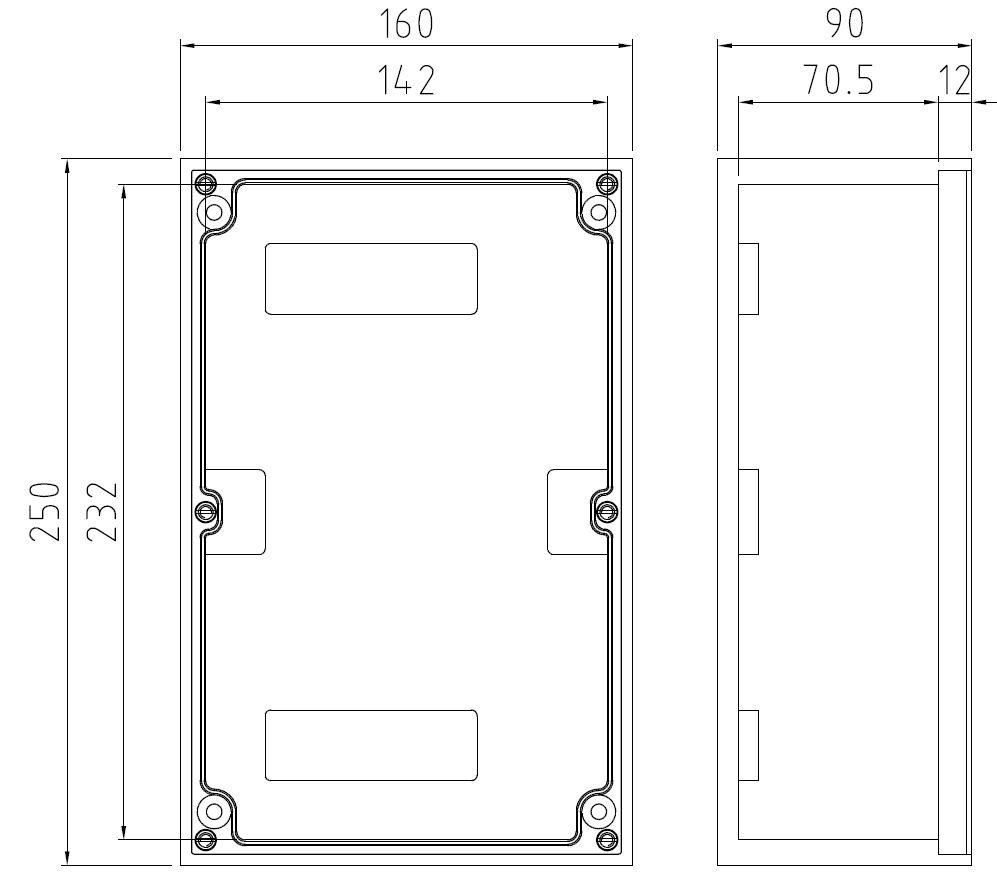

Type: 2516
Width: 251 mm
Height: 161 mm
Depth: 90 mm
