Item No: 051062

Hard rubber junction box type 3020,

coloured grey, 10x cable glands M20x1.5, terminal 10x6mm²

Please log in to be able to use the shopping cart and then complete orders.

Technical data

Input of cable gland(s): M20
Input: 10xM20
For cable diameter till max.: 5 x 35mm²
Terminal: 10 x 6mm²
Case colour: light grey
Case material: solid rubber
Characteristics hard rubber: Hard Rubber:
fully insulated
impact resistant
UV resistant
halogen-free
aging and temperature resistance
oil-and acid-resistant
fire resistant
self extinguishing
good chemical resistance
Protection rating: IP65
Fixation: 4 internal assembly channels

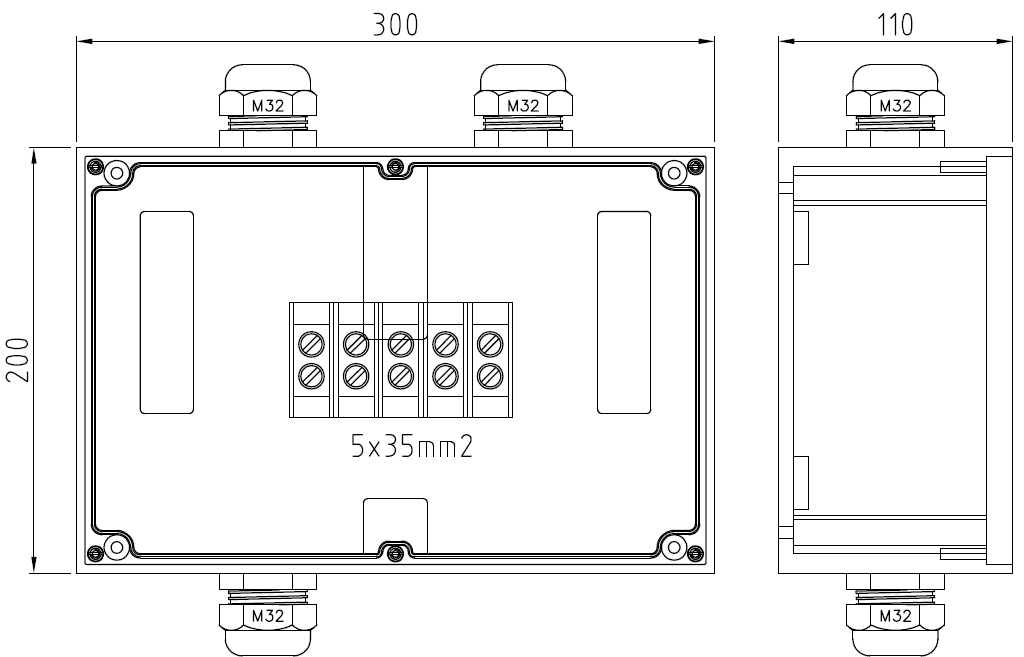

Type: 3020
Width: 302 mm
Height: 202 mm
Depth: 110 mm
