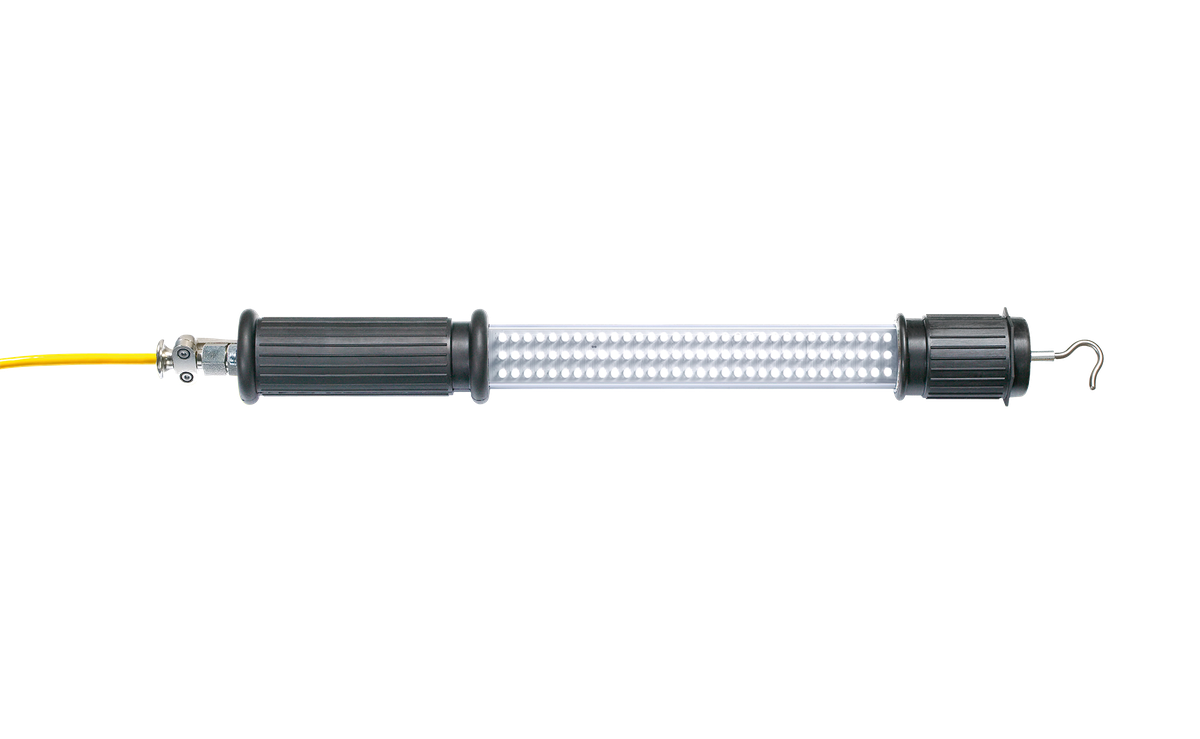

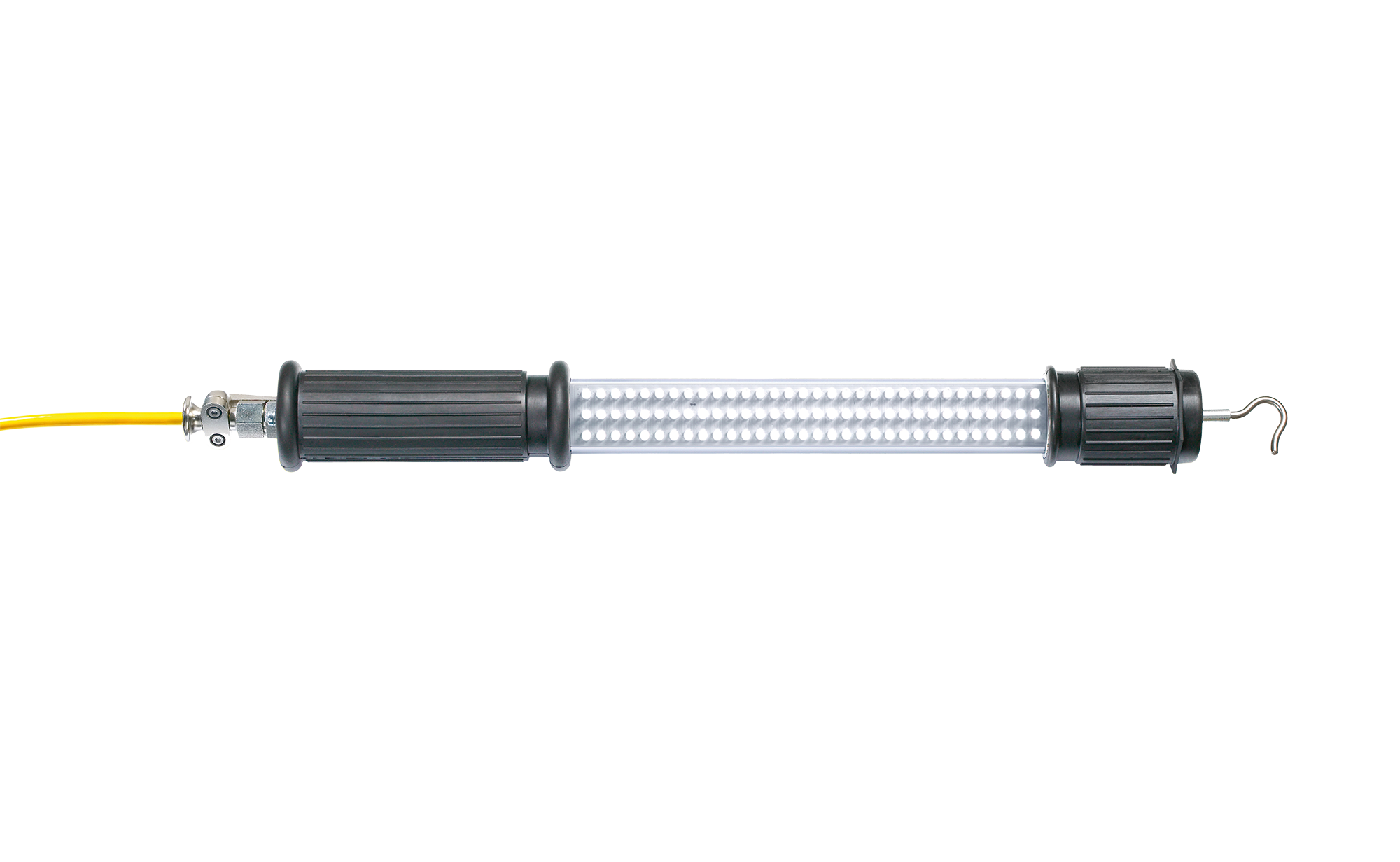

LED hand lamp explosion-proof 100-264VAC

Technical data

Protection rating

IP68 (24h - 2.5m)

Length

640 mm

Weight

1.5 kg

Material housing / tube

polycarbonate

Voltage

100-264VAC/120-370VDC

Lamps

LED

Allowable ambient temperature

-20°C to +60°C

Cable length

5 m

Performance

10 W

Zone(s) Ex

1, 2 + 21, 22

EC-type examination certificate

BSV 07 ATEX E 164 X

Directive 94/9/EC

II 2G Ex db IIC T5 Gb, II 2D Ex tb IIIC T95° C Db

Pipe diameter

44 mm

International regulations

IECEx BVS 08.0014 X

Accessories

Item No: 239756

Spring clip made of nickel-plated steel

for diameter approx. 50mm (on LED machine lamp explosion-proof 10W)

Item No: 019281

Spring clip steel nickel-plated

for explosion-proof lamps ø40mm

Item No: 143813

Magnetic clamp, for loads up to 10kg, type PM1

for explosion-proof lamps with Ø ~50mm

Item No: 143814

Magnetic clamp, for loads up to 50kg, type PM2,

for explosion-proof lamps ø60mm
