Item No:
255506

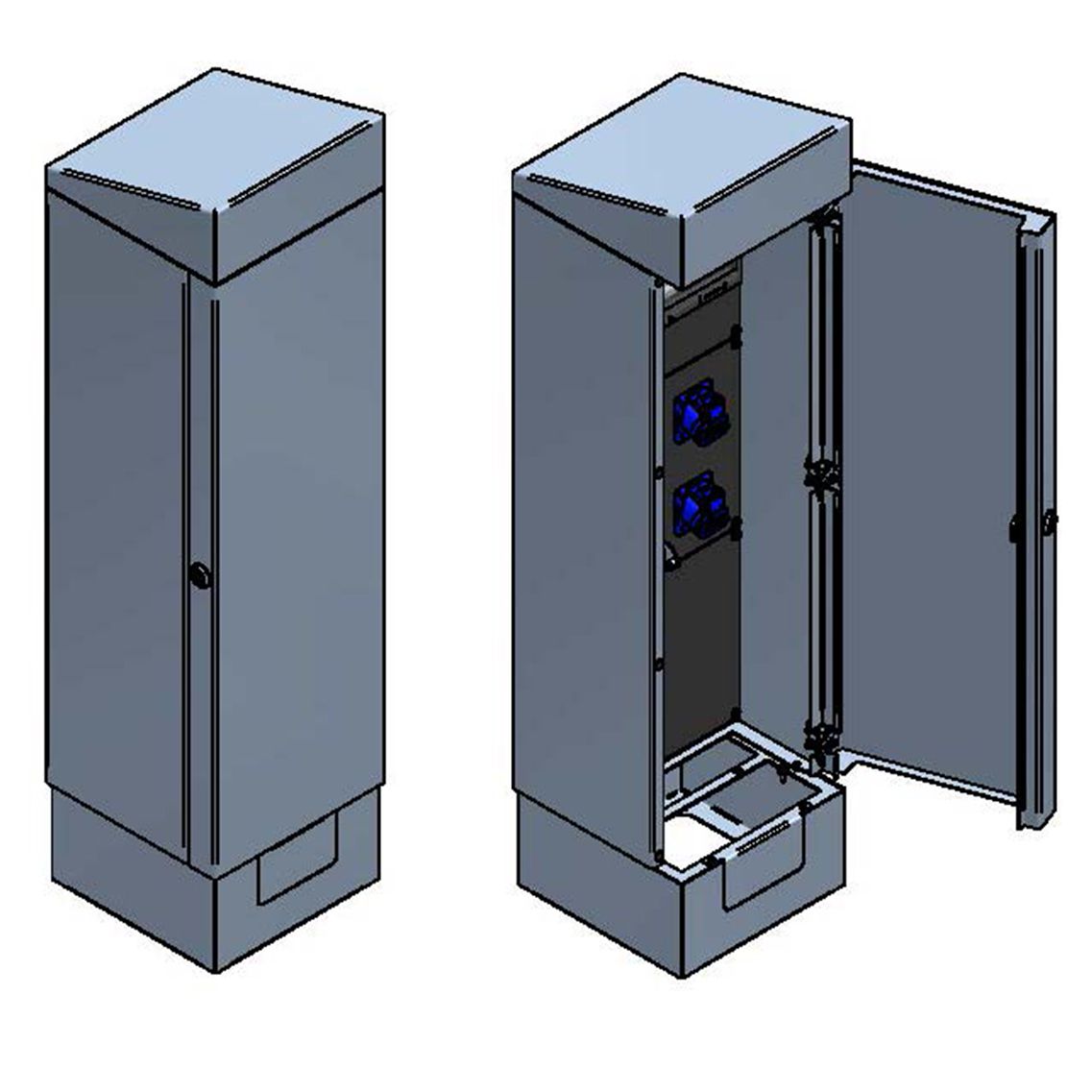

Power column QUADRO M V2A polished
☐ 300mm, h=1'160mm, IP44, triangle lock 8mm
4xCEE16/3
Technical data
- max. pre-fuse
- 80 A
- Output plug
- CEE 16/3
- Equipment
- 4xCEE16/3
- Protection rating
- IP44
- Colour
- V2A polished
- Material
- stainless steel V2A
- Width
- 300 mm
- Height
- 1160 mm
- Depth
- 300 mm
- Fixation
- on concrete base or optionally with floor flange
- Input
- 2x cable entry grommet M50 ø22-36mm
- Wall thickness
- 2 mm
- Locking
- triangle lock 8mm
Downloads
Dimensional drawing/SchemeAccessories
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/257334%20Bodenflansch%20M.jpg)
Item No:
257334
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/246789/246789.png)
Item No:
246789
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/250452/250452.png)
Item No:
250452
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/256080/images/a_0_0_683_0_0.jpg)
Item No:
256080
Interior lighting LED 230V 10W, 3'000K, 750lm
(for RONDO, QUADRO + main distribution boxes)
