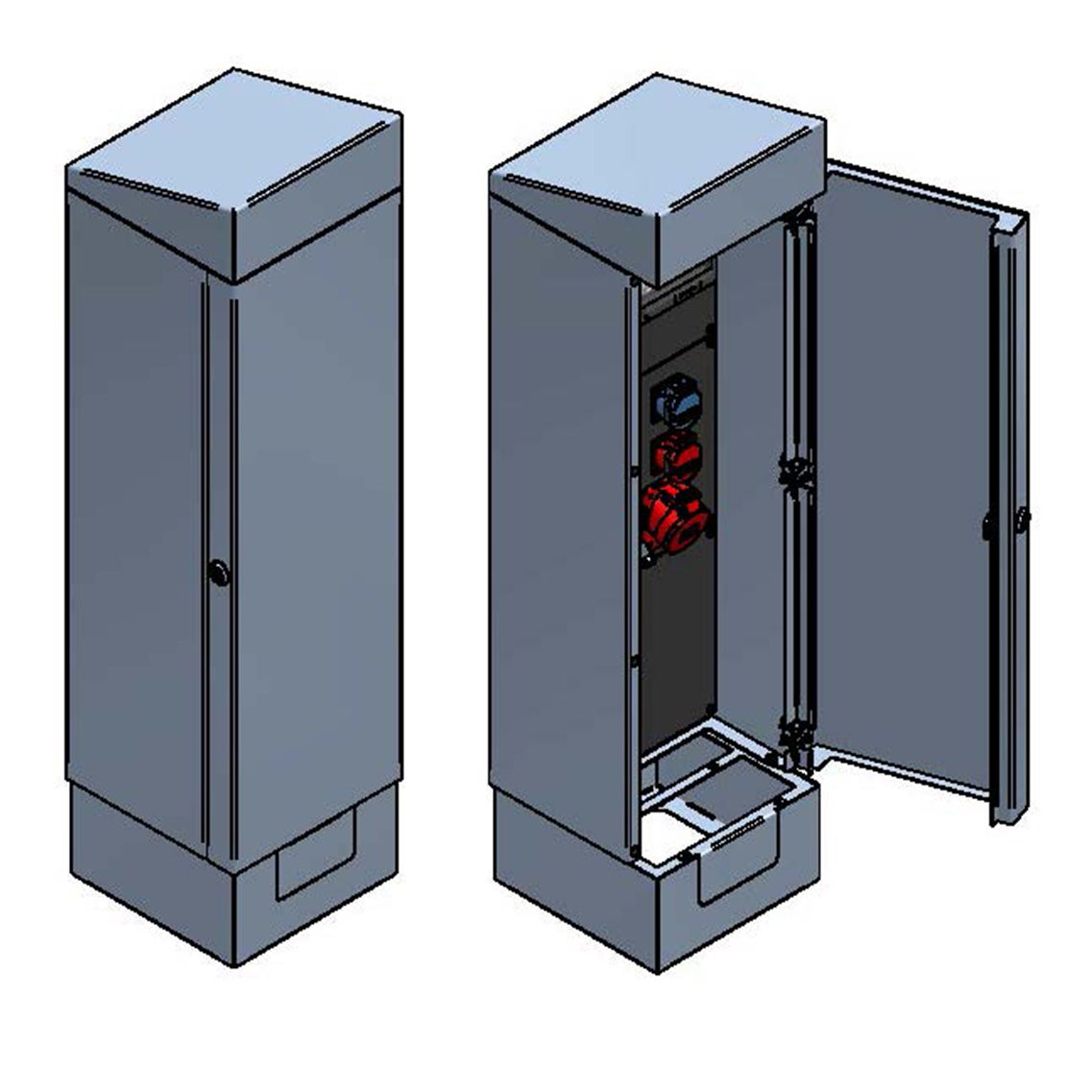

Power column QUADRO M V2A polished

Technical data

max. pre-fuse

80 A

Output plug

• T23
• T25
• CEE 16/5
• CEE 32/5

Equipment

2xT23, 2xT25, 1xCEE16/5, 1xCEE32/5

Protection rating

IP44

Colour

V2A polished

Material

stainless steel V2A

Width

300 mm

Height

1160 mm

Depth

300 mm

Fixation

on concrete base or optionally with floor flange

Input

2x cable entry grommet M50 ø22-36mm

Wall thickness

2 mm

Locking

triangle lock 8mm

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 257334

Floor flange stainless steel for QUADRO M

Item No: 246789

Water tap stainless steel for RONDO/QUADRO

Item No: 250452

Air connection stainless steel for RONDO/QUADRO

Item No: 256080

Interior lighting LED 230V 10W, 3'000K, 750lm

(for RONDO, QUADRO + main distribution boxes)

Show all
