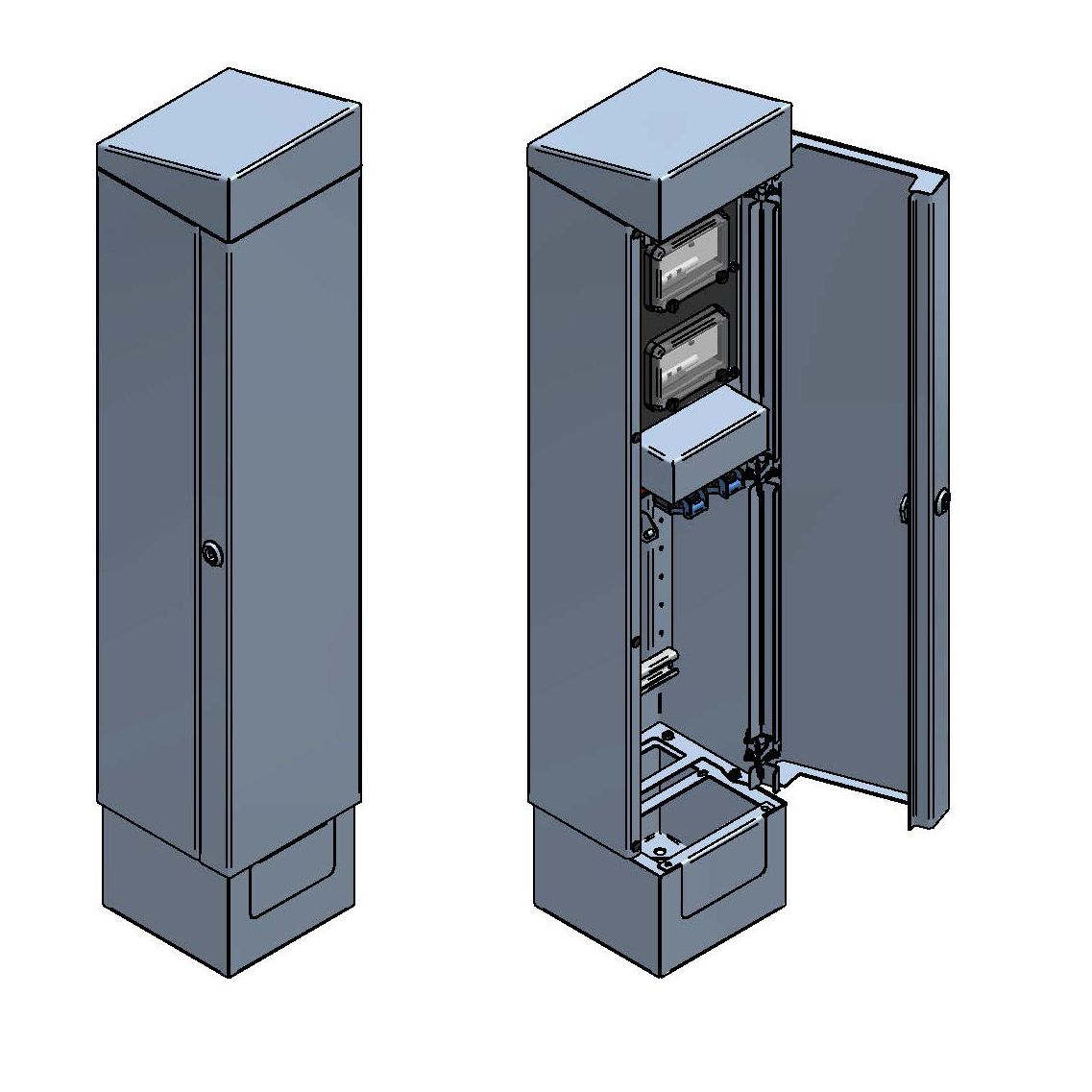

Power column QUADRO S V2A polished

Technical data

max. pre-fuse

80 A

Output plug

• T23
• T25

Equipment

2xT23, 2xT25

Protection rating

IP44

Colour

V2A polished

Material

stainless steel V2A

Width

220 mm

Height

1139 mm

Depth

220 mm

Fixation

on concrete base or optionally with floor flange

Input

2x cable entry grommet M40 ø12-27mm

Wall thickness

2 mm

Locking

triangle lock 8mm

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 257607

Floor flange stainless steel for QUADRO S

Item No: 246789

Water tap stainless steel for RONDO/QUADRO

Item No: 250452

Air connection stainless steel for RONDO/QUADRO

Item No: 258952

Cable outlet-insertion piece with strip brush for QUADRO S/M
