Item No:
263453

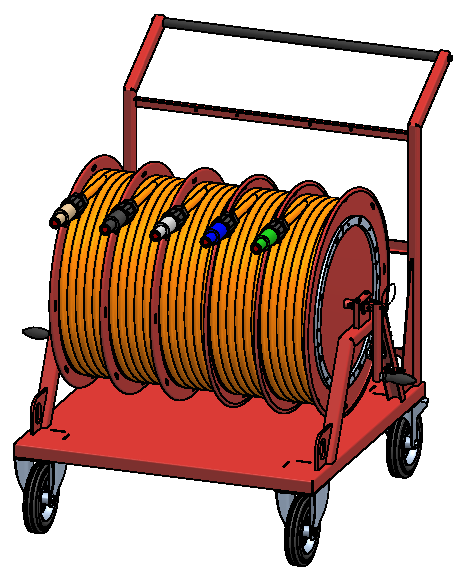

Sheet steel cable reel red type 506
5x(1x95mm²) à 30m EPR/PUR orange
with PowerSAFE 500A plugs/connectors
Technical data
- Input
- 5xPowerSAFE 500A
- Output
- 5xPowerSAFE 500A
- max. pre-fuse
- 400 A
- Cable length
- 30 m
- Cross-section x mm²
- 5 x (1x95) 3L+N+PE
- Material bearer frame
- steel
- Case material
- steel
- Cable
- EPR/PUR H07BQ-F
- Input
- PowerSAFE
- Reel body
- yes
- Weight
- 260 kg
- Color reel body
- Red RAL 3020
- Protection rating
- IP55
- Height
- 1150 mm
- Width
- 1184 mm
- Depth
- 1200 mm
- Colour
- Red RAL 3020
