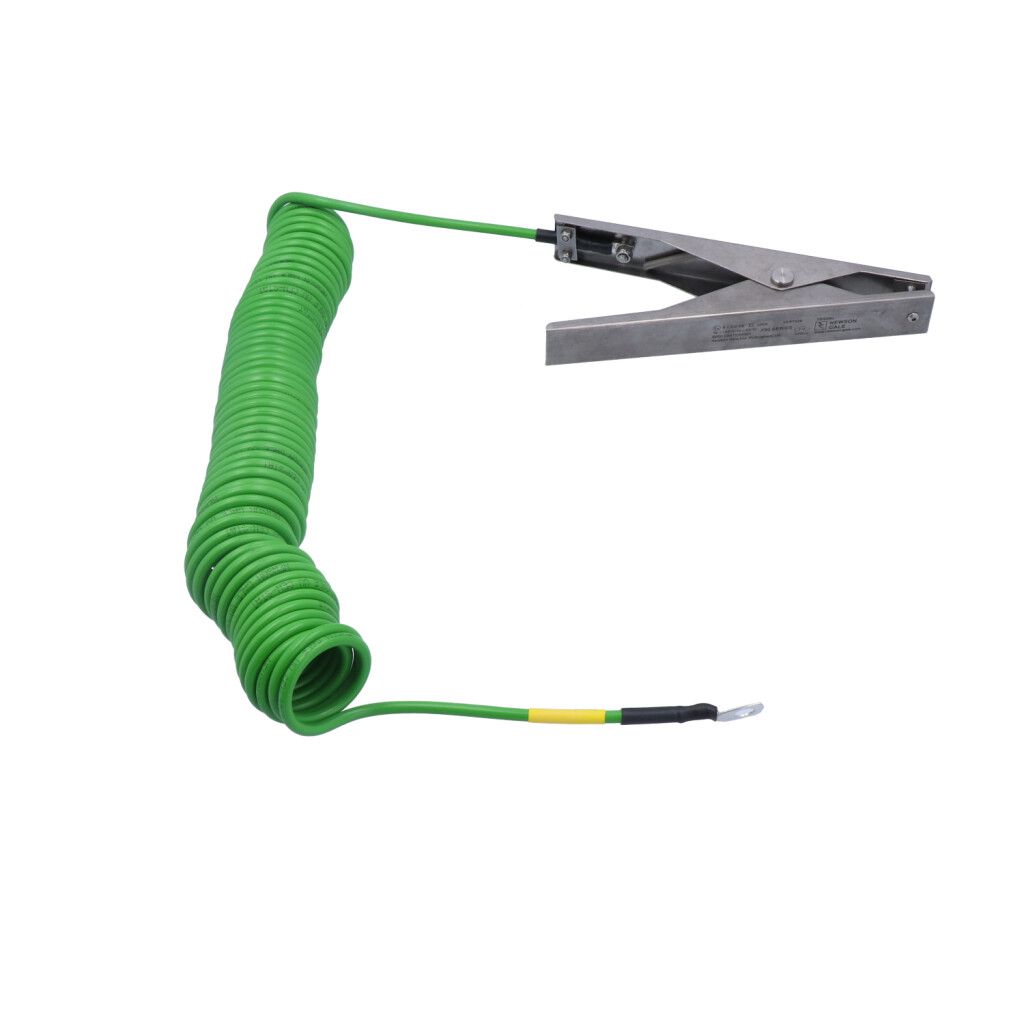

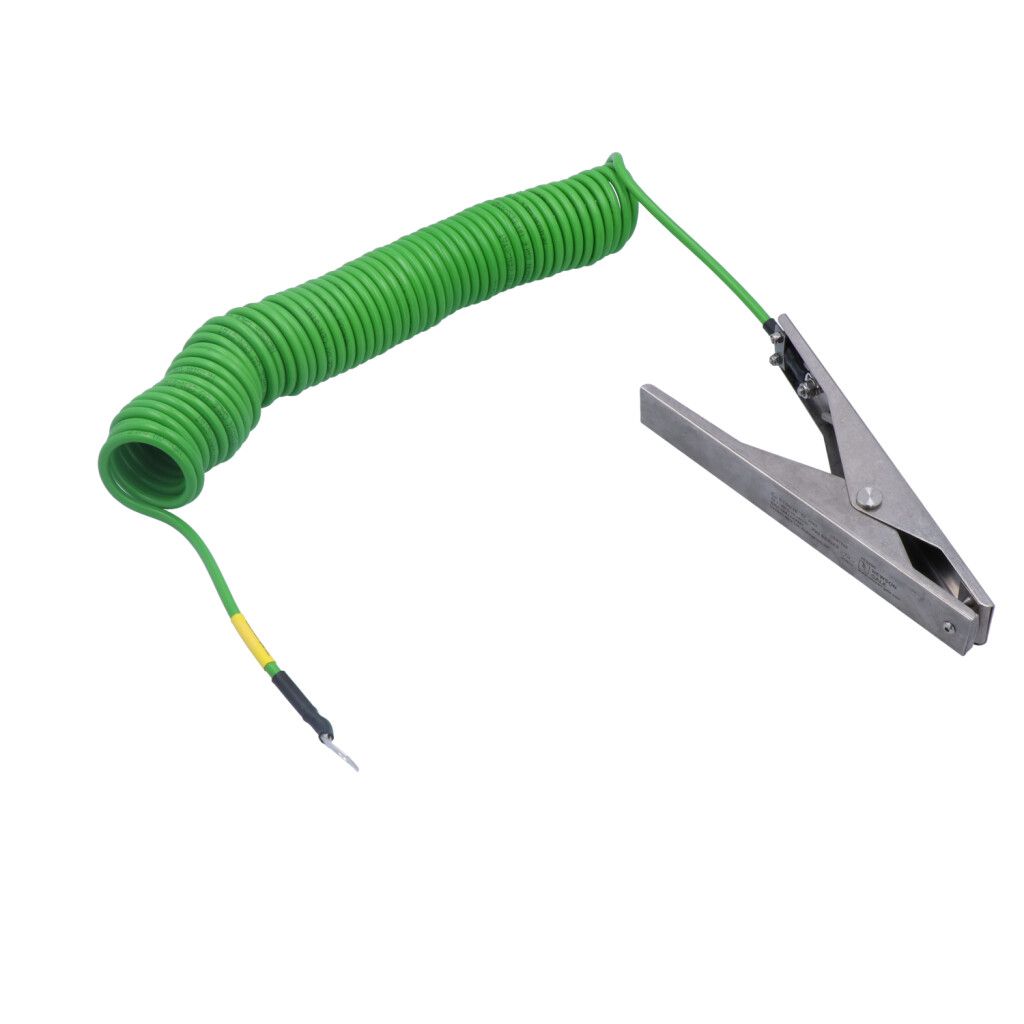

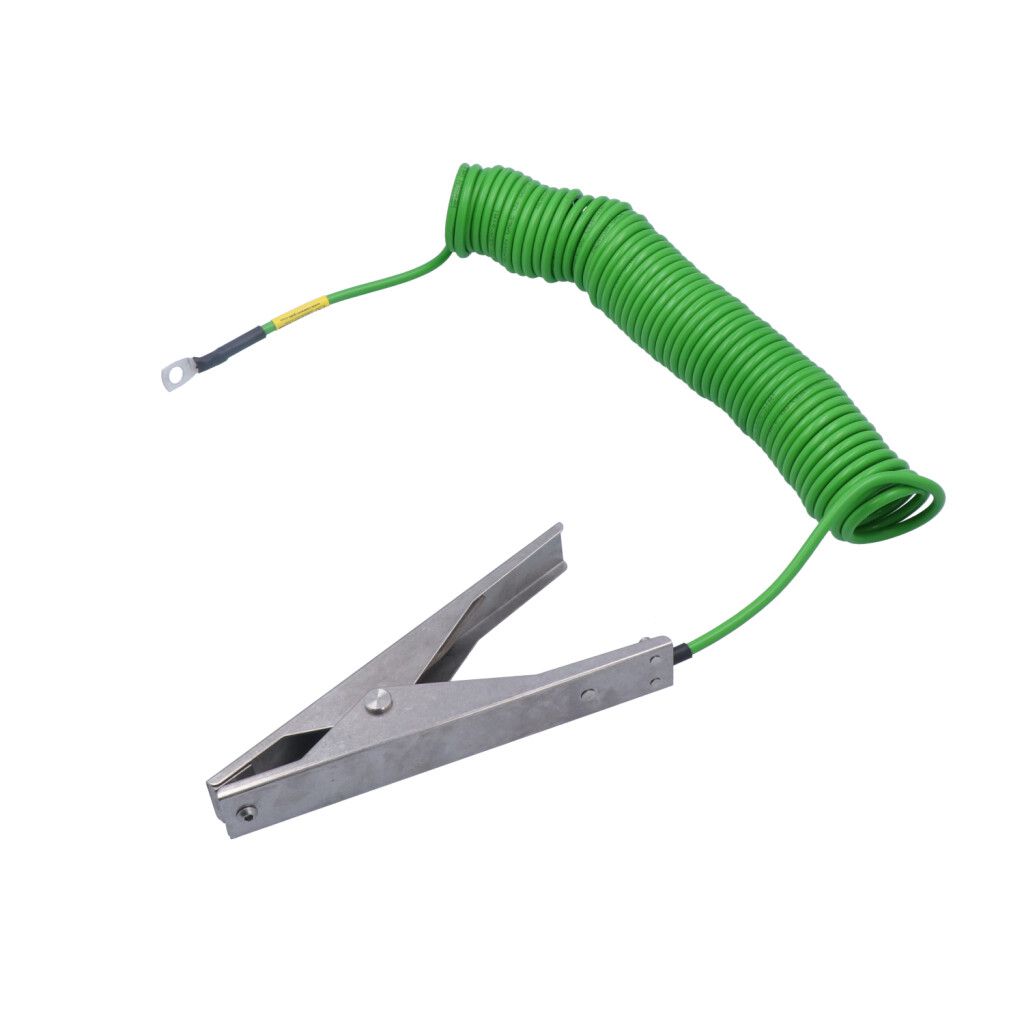

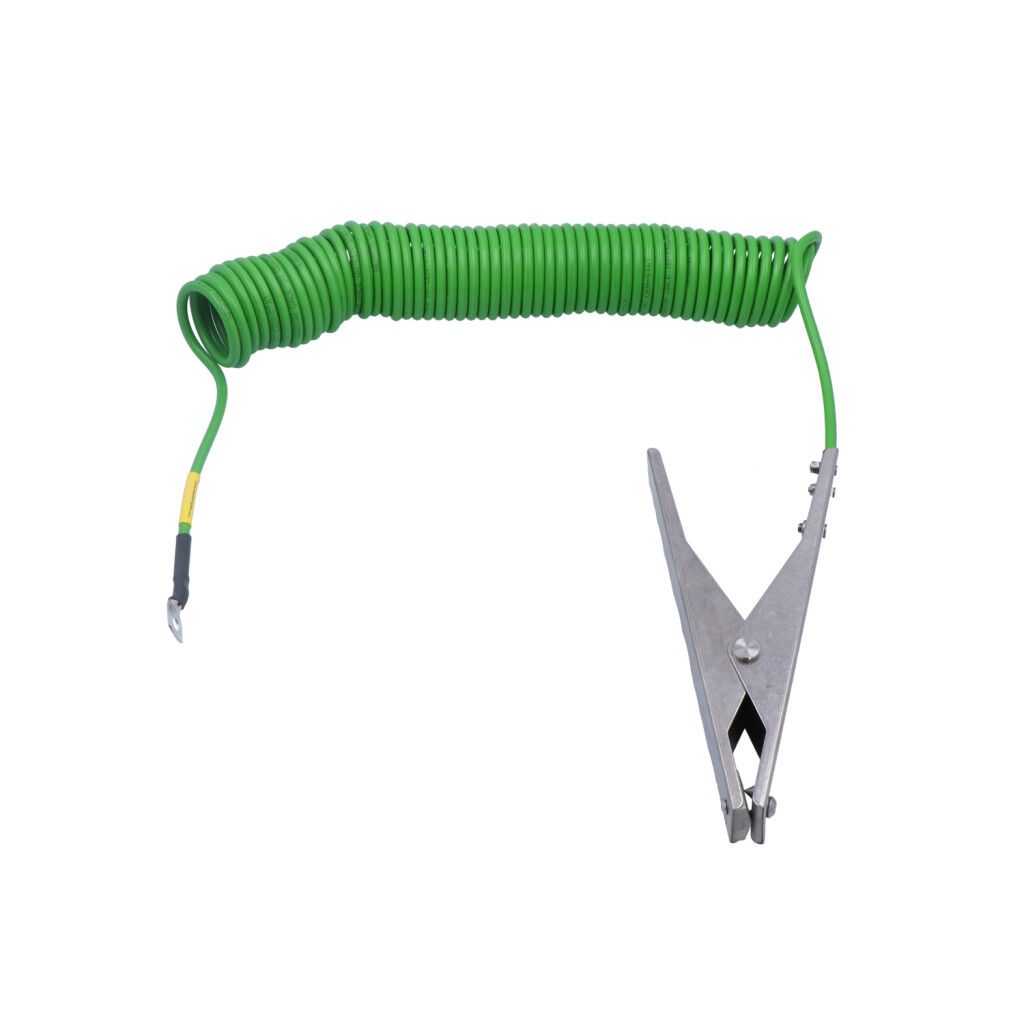

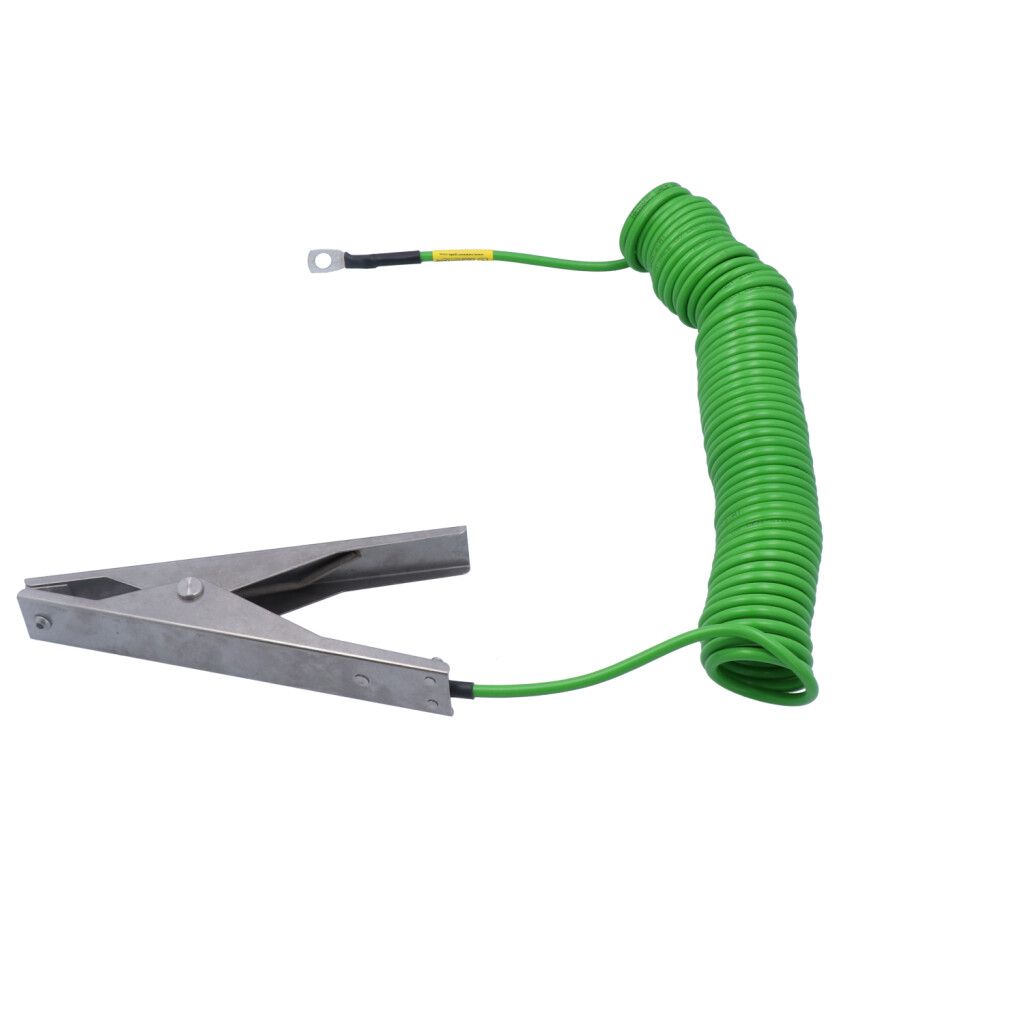

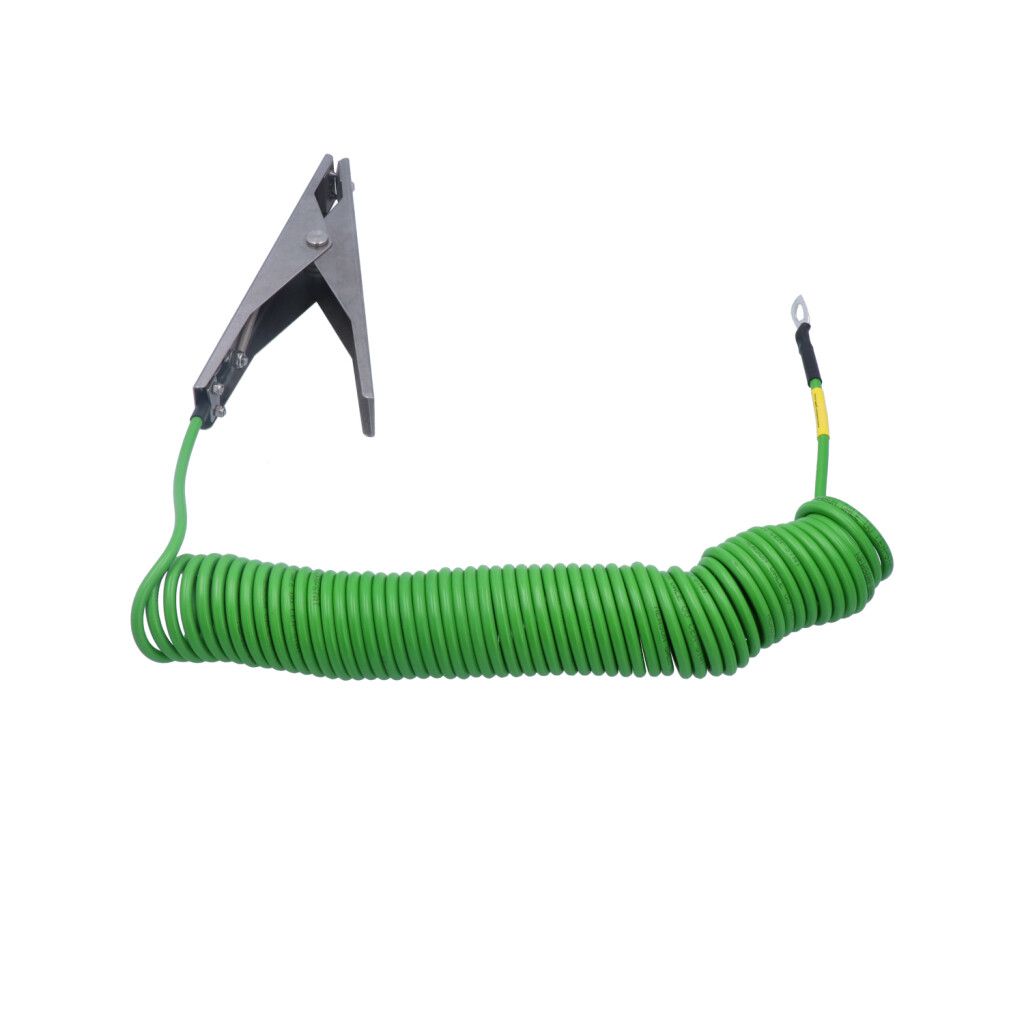

Single-pole heavy-duty stainless steel earthing clip,

with 2 tungsten carbide teeth, 5 m, 1×4 mm2, yellowgreen, second end with cable socket

Technical data

Temperature range: -40°C to +60°C
Identification: II 1 GD T6
Explosion-proof: EN 13463-1:2009
Cross-section x mm²: 1 x 4.0
Product properties: Clip material: stainless steel (55304)
Clip tips: 2 tungsten carbide tips
max. opening width: ~ 30mm
Cable: Cen-Stat spiral cable with galvanised steel braided wires as well as green, electrostatically conductive Hytrel coating with UV protection, highly durable, resistant to chemicals and UV, max. length 5m (extension factor 1:10).
Conductor diameter: 6mm with Cen-Stat coating
conductor cross-section: 4mm² (~ 11 AWG)
Cable lug: ø10mm
ATEX certification number: Sira 02ATEX9381
