Item No: 228737

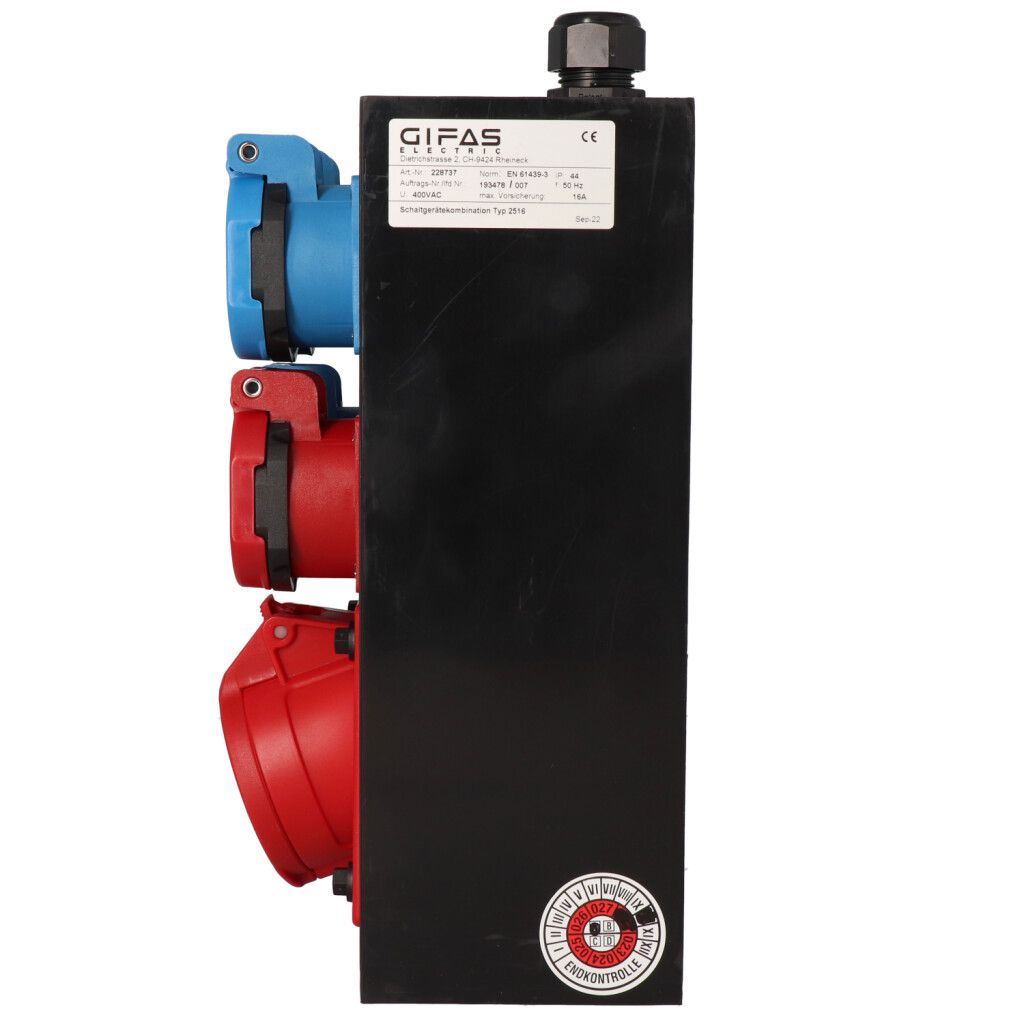

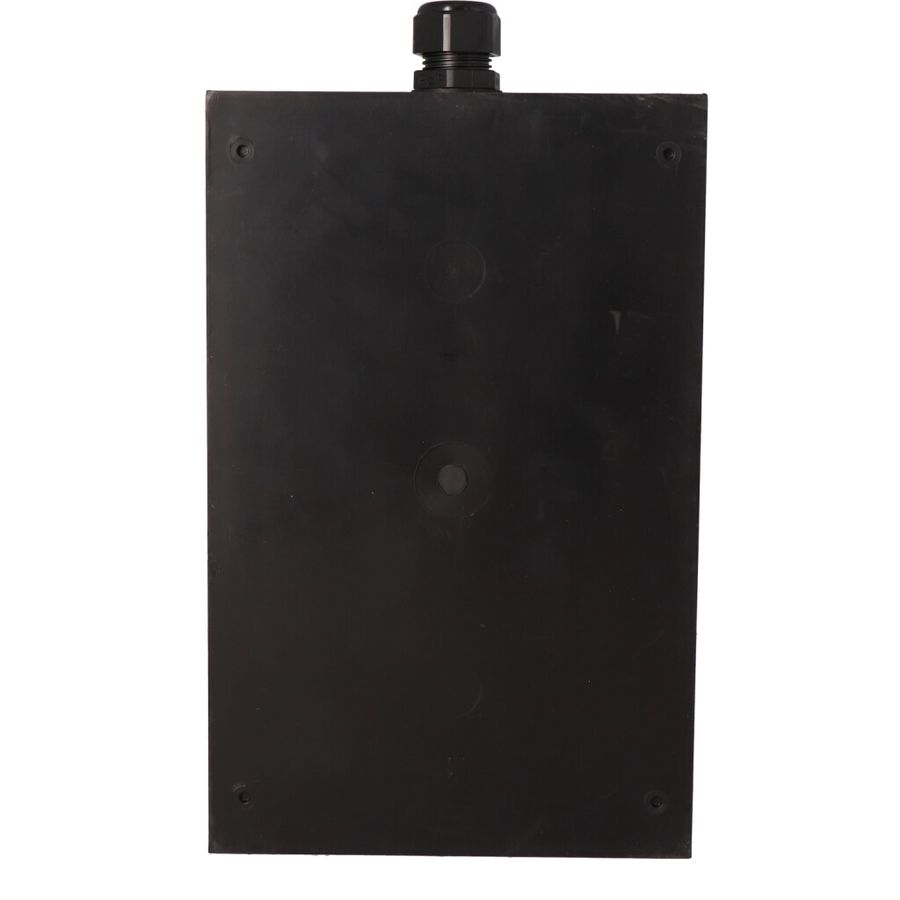

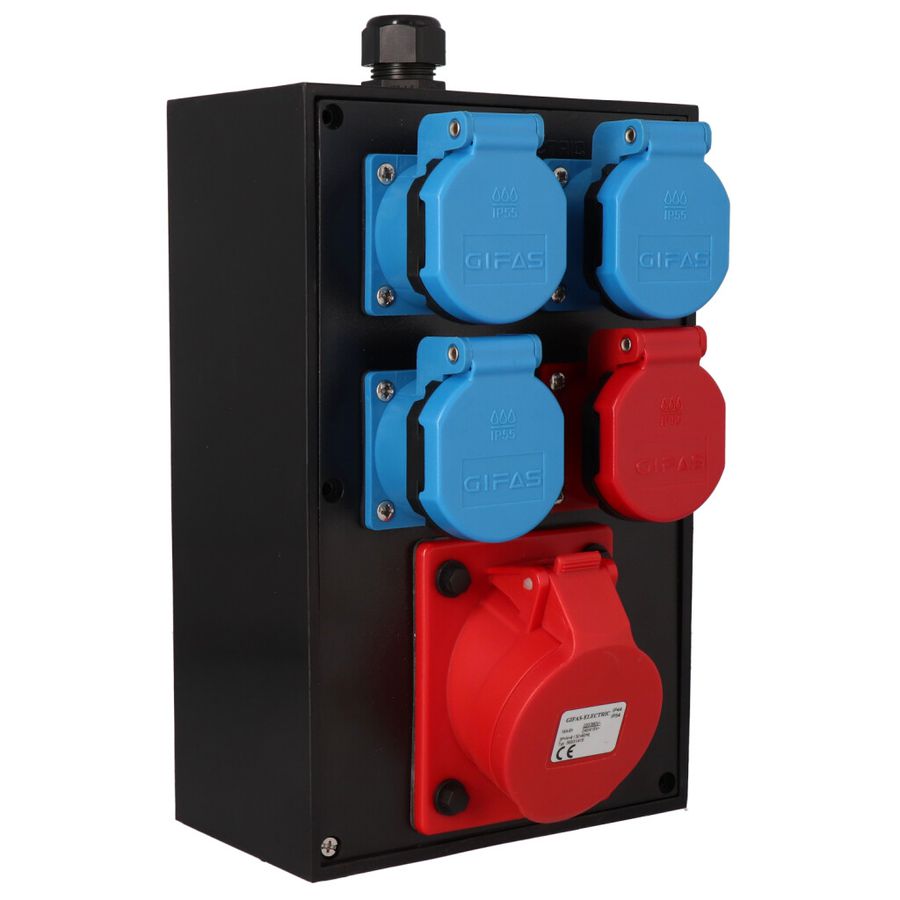

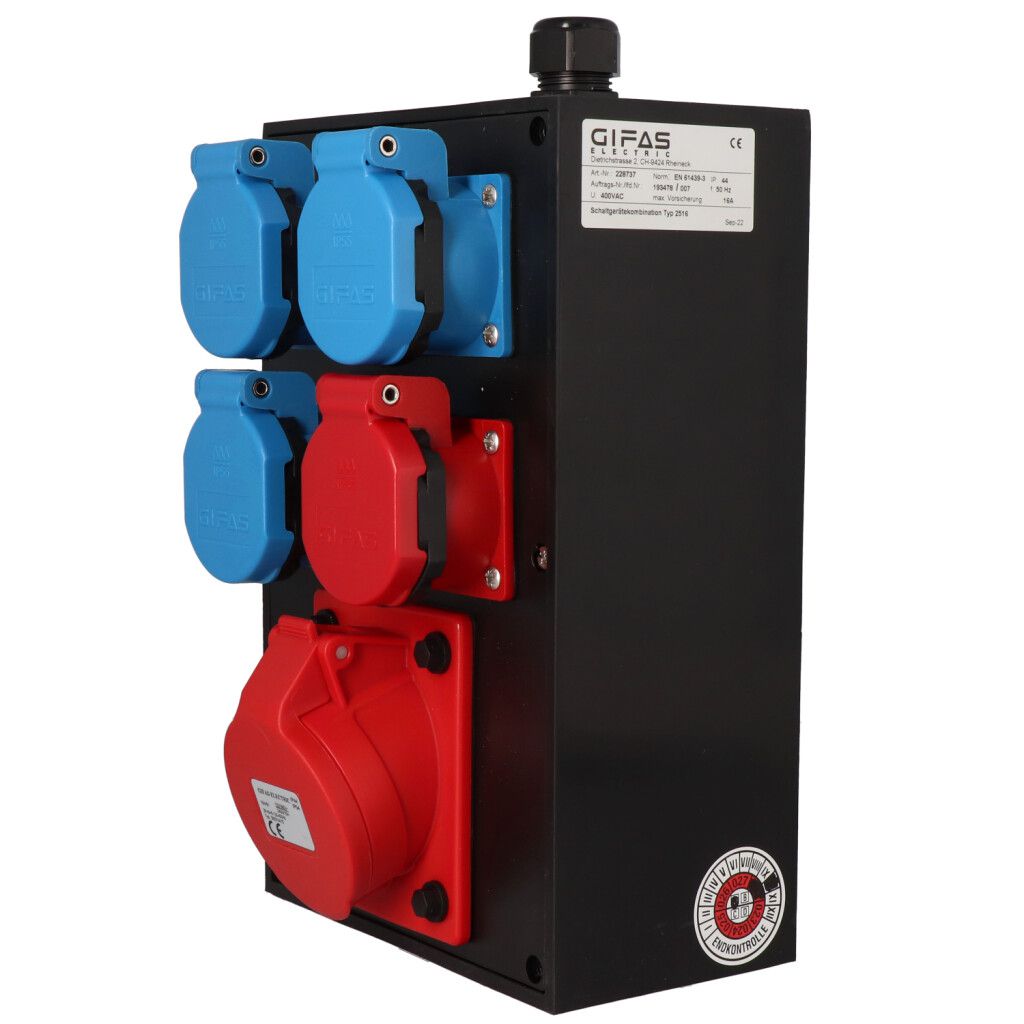

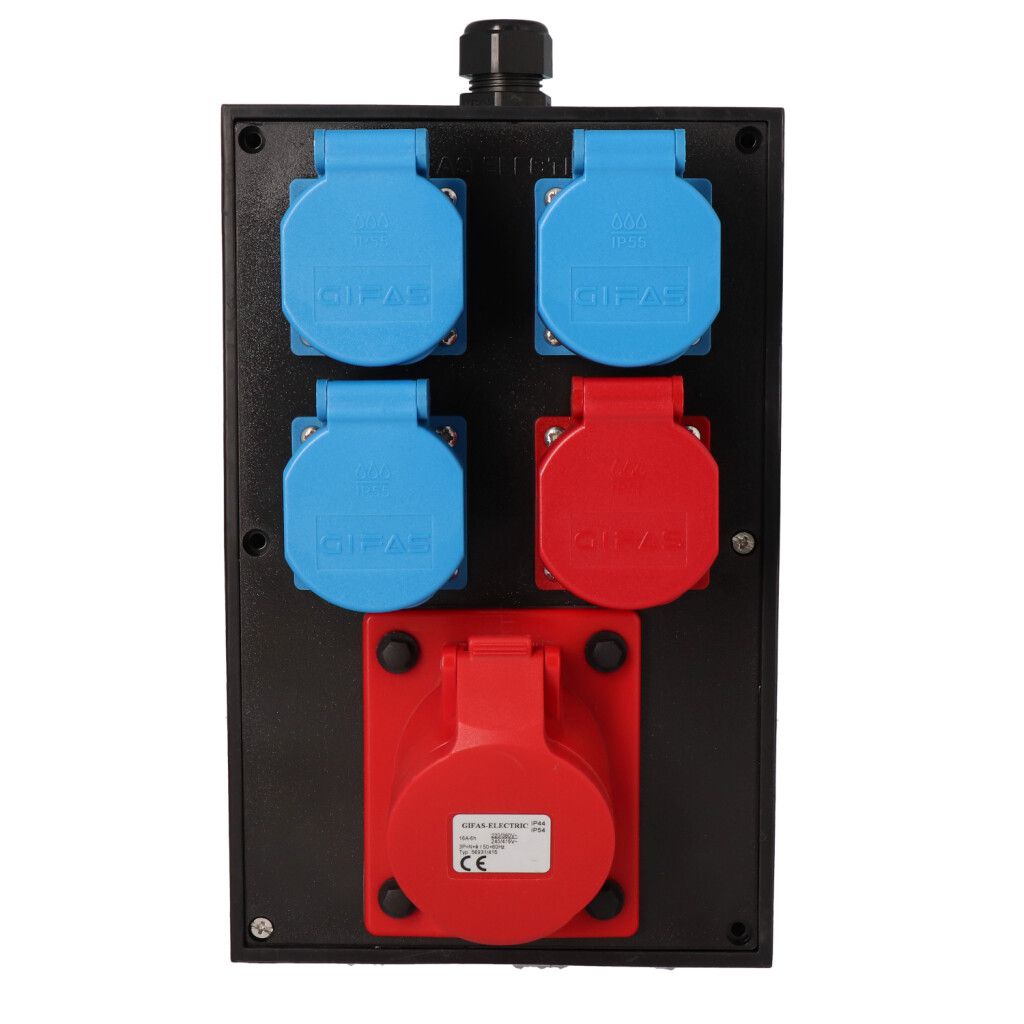

Small hard rubber distributor box type 2516, black

2516.8391411.M20/1 (095770)

Technical data

Output plug
  • T23
  • T25
  • CEE 16/5
max. pre-fuse
16 A
Input of cable gland(s)
M20
Position of cable gland(s)
above
Width
161 mm
Height
251 mm
Depth
90 mm
Type
2516
Protection rating
IP44
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
Case colour
black
Fixation
4 internal, separated assembly channels for wall mounting
Output
3xT23, 1xT25, 1xCEE16/5

Downloads

Dimensional drawing/Scheme
