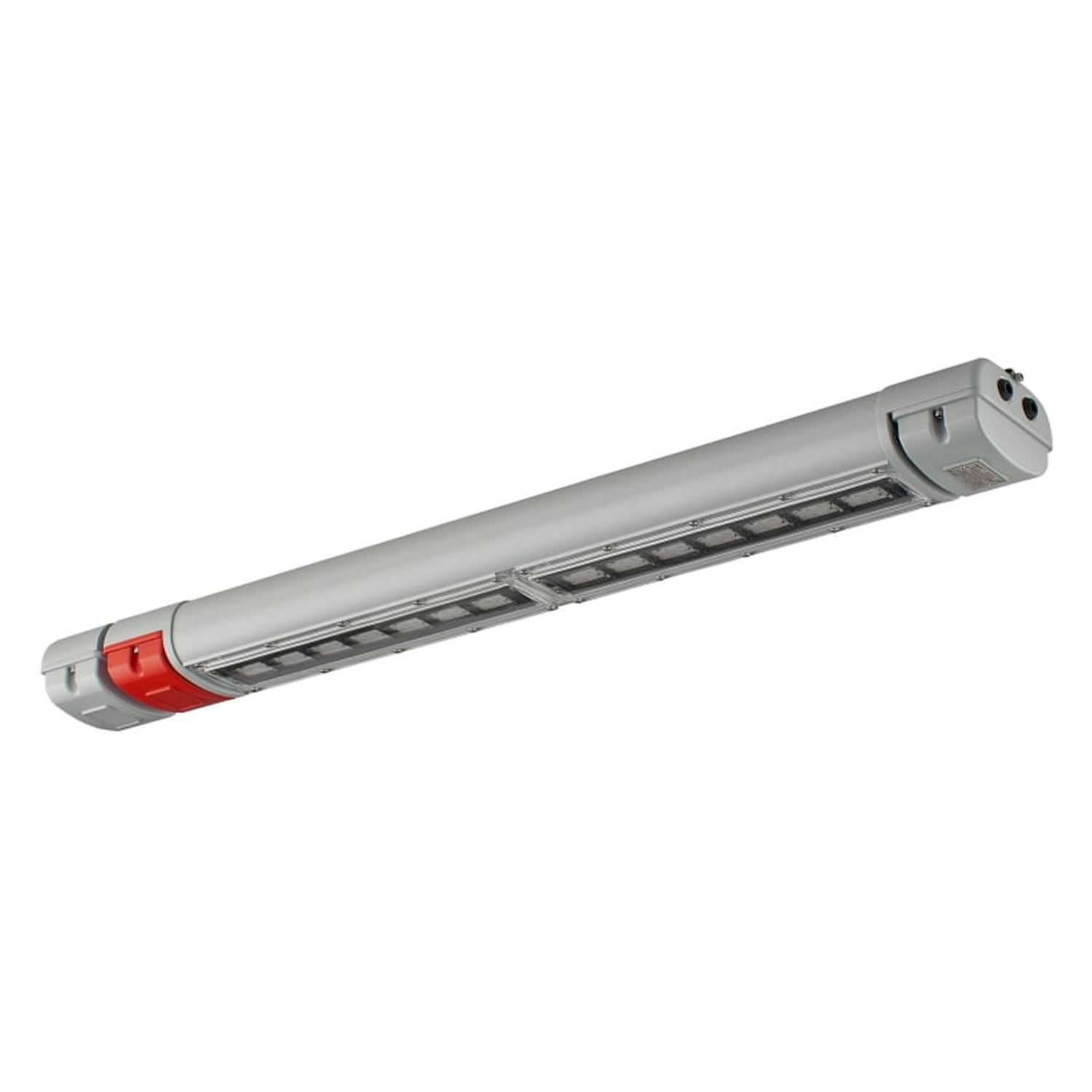

SPARTAN Linear luminary Ex 160LED, 56W,

Technical data

Input voltage: 110-254VAC
Performance: 56 W
Emergency light function: yes
Frequency: 50/60Hz
Light performance: 6'130lm
Power factor: >0.95
Colour temperature: 6500 K
CRI Index: >80
Lamps: Platinum Elite SMT LED
Quantity of LED: 160
Protection rating: IP66/IP67

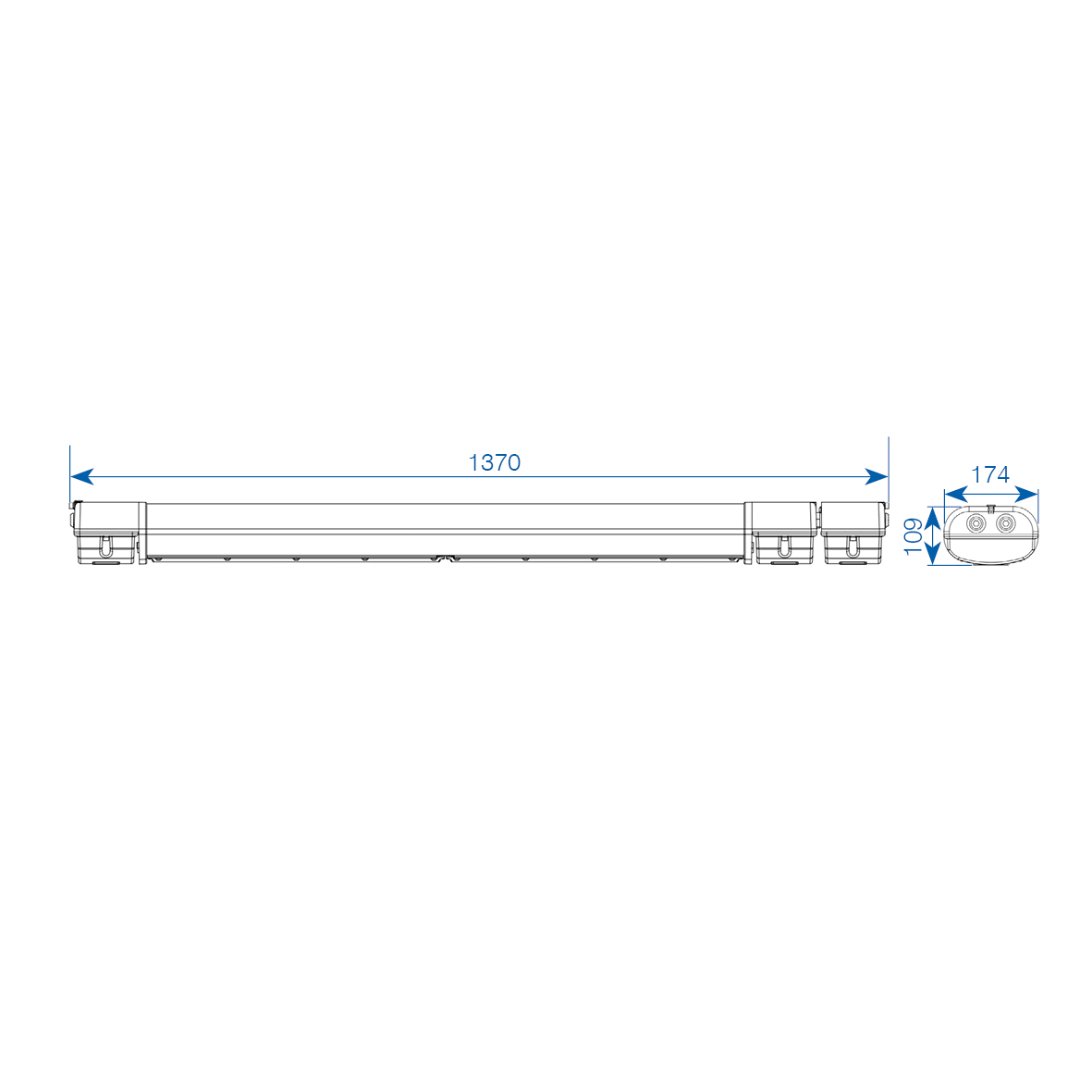

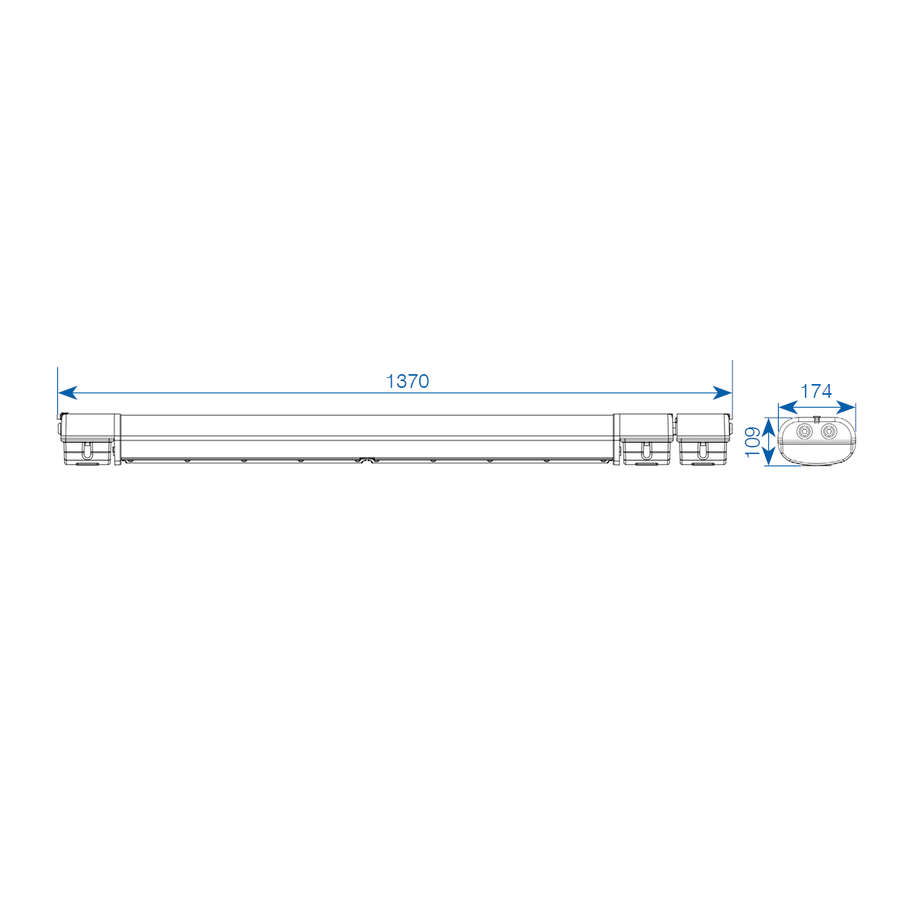

Width: 1370 mm
Height: 109 mm
Depth: 174 mm
Weight: 10 kg
Zone(s) Ex: 1, 21
Gas group: II2 G D Ex eb mb IIC T4 Gb
Dust group: Ex tb IIIC T80° C Db
ATEX certification number: CML14ATEX3119, IECExCML15.0001, CML21UKEX3105
Temperature range: gas & dust: -20°C to +50°C
Additional equipment: With intelligent emergency light function in the event of a power failure

Function: self-testing intelligent emergency lights
Indication of system status: three-colour LED indicator
Emergency luminaire operating time: up to 3h at 25% light output (other versions on request)
Emergency light battery: 2.5Ah
Battery charging time: 20h
Product properties: SPARTAN spotlights are also available as an emergency light. The standard versions can be converted to an emergency light on site at any time by means of an additional battery backup module which can deliver up to 100% light output in emergency operation. All SPARTAN emergency spotlights are equipped with an intelligent battery management system to pro-actively monitor and maintain the overall health of your luminaire (DALI-enabled).

Several SMT LEDs with a low profile and medium power are used to provide sharp-edged, even lighting without glare.
