Item No: 212687

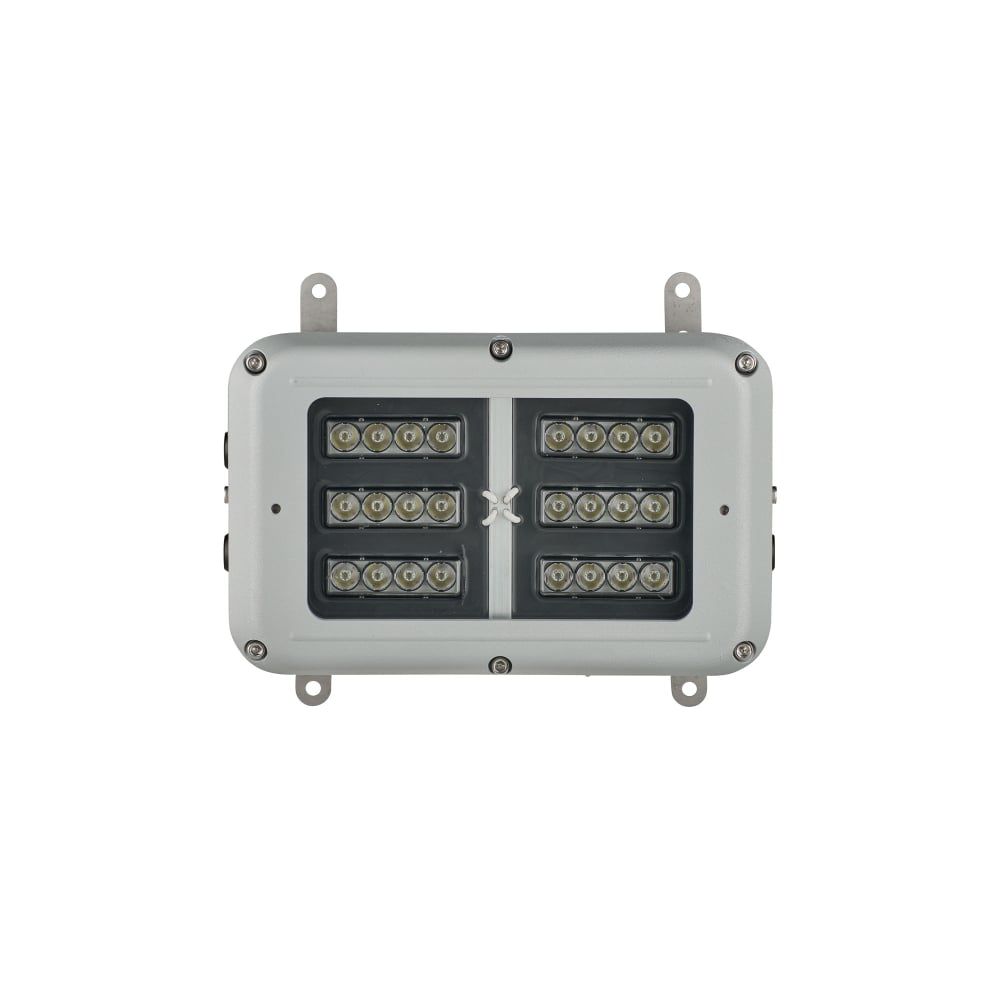

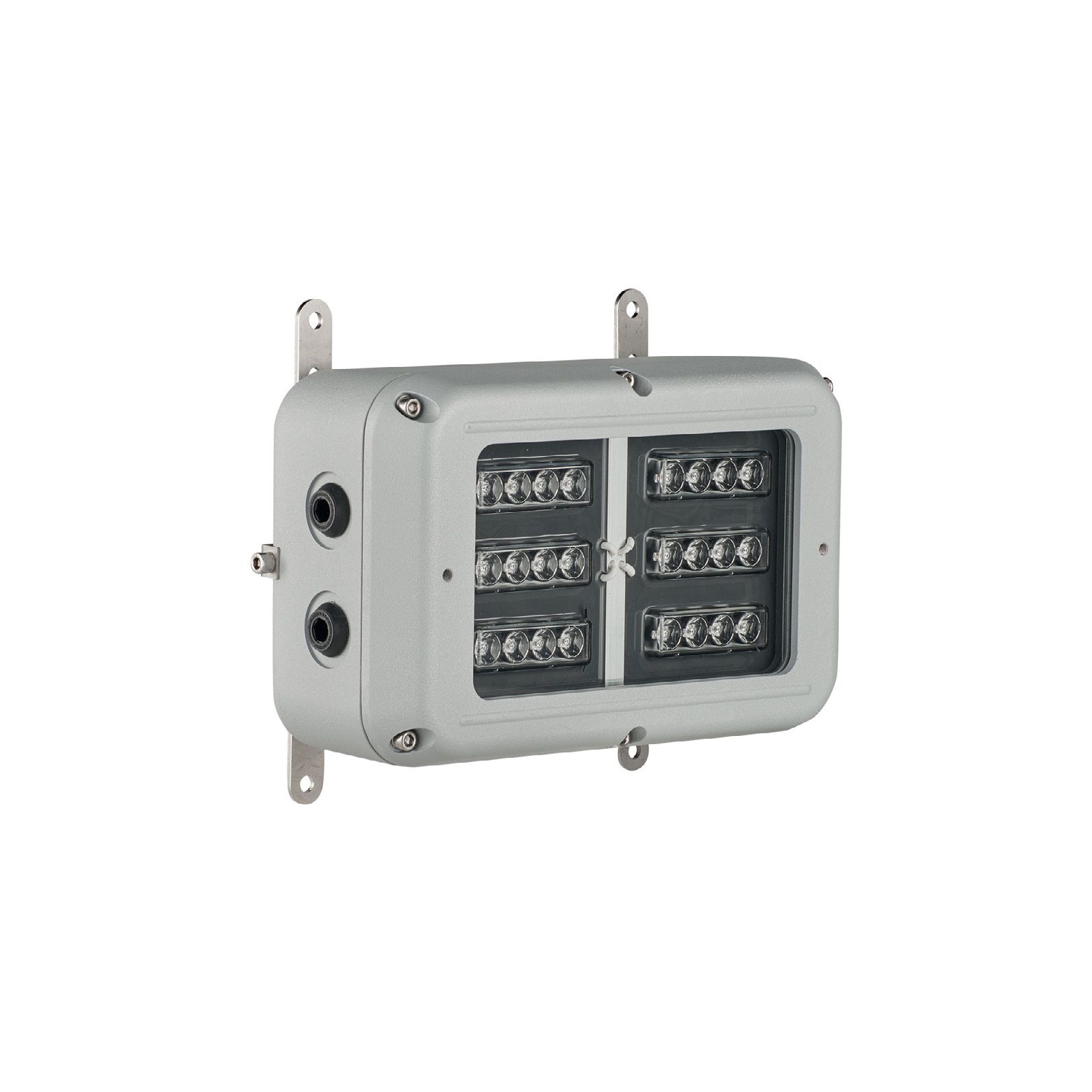

SPARTAN SpotlightEx 24LED, 20W, 230VAC, 6'500K,

2'500lm, zone 1/21- with emergency light function

Technical data

Input voltage
110-254VAC
Performance
24 W
Emergency light function
yes
Frequency
50/60Hz
Light performance
2'500lm
Power factor
>0.9
Colour temperature
6500 K
Optics
120°x120°
CRI Index
>80
Lamps
Platinum Elite SMT LED
Quantity of LED
24
Protection rating
IP66/IP67

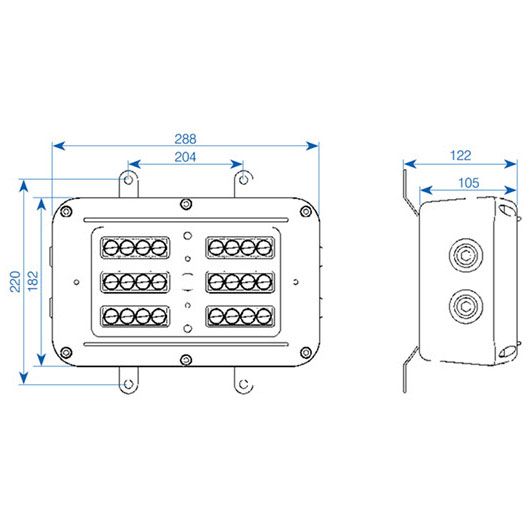

Width
288 mm
Height
182 mm
Depth
105 mm
Weight
6 kg
Zone(s) Ex
1, 21
Gas group
II 2 G D Ex eb mb IIC T4 Gb
Dust group
Ex tb IIIC T98° C Db
ATEX certification number
CML13ATEX3007, IECExCML14.0001, CML21UKEX3099
Temperature range
gas & dust: -20°C to +46°C
Additional equipment
With intelligent emergency light function in the event of a power failure


Function: self-testing intelligent emergency lights
Indication of system status: three-colour LED indicator

Emergency luminaire operating time: up to 3h at 25% light output (other versions on request)
Emergency light battery: 2.5Ah
Battery charging time: 20h

Product properties
Intelligent emergency lighting
SPARTAN spotlights are also available as an emergency light. The standard versions can be converted to an emergency light on site at any time by means of an additional battery backup module which can deliver up to 100% light output in emergency operation. All SPARTAN emergency spotlights are equipped with an intelligent battery management system to pro-actively monitor and maintain the overall health of your luminaire (DALI-enabled).

Space-saving design
SPARTAN spotlights have a compact, flat design for applications where space is at a premium. It also provides easy access to the rear of the unit with rear cable inlets, allowing the cabling to be hidden and protected from damage.

Robust
The IP66/IP67 protection category and the housing of corrosion-resistant, marine grade LM6 aluminium with A4 stainless steel fasteners and brackets allow SPARTAN floodlights to be used in the most extreme environments.

LED
SPARTAN spotlights use CoolExtrude™ thermal management technology, which guarantees a much cooler LED operating temperature. This provides up to 60% better heat dissipation compared to conventional lighting solutions and allows the product to operate for more than 10 years.
