Item No: 260814

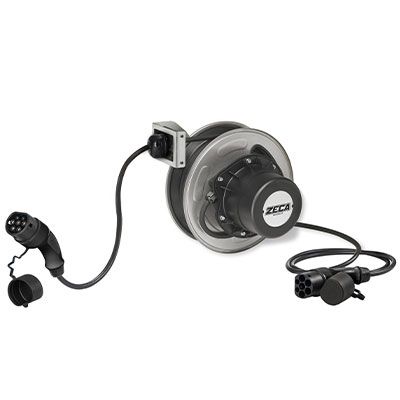

Spring-driven cable reel 'E-Mobility' type EV6322T (32A)

8m+1.5m 5x6.0mm², type-2, IP65

Please log in to be able to use the shopping cart and then complete orders.

Technical data

Type: EV6322T (32 A)
Cable: 5×6.0 mm² + 1×0.5 mm²
8 m rolled up + 1.5 m feed-in cable
Charging: 22 kW (3P 32 A @ 400 V)
Input: Type-2 (Mennekes)
Output: Type-2 (Mennekes)
Thermal protection: yes
Scope of delivery: An assembly bracket is not included in the scope of delivery. Please note that accessories are available for this purpose (to be ordered separately).
Fixation: Direct mounting on the wall or with special swivelling bracket; to be ordered separately
Case material: steel epoxy coated
Model: open
Protection rating: IP65
Weight: 18 kg

Item No: 139016

Item No: 260816

for type EV6162T + EV6322T (E-Mobility)
