FlexLED



unrolled - docked - ready

Time is money. This also applies to the construction site, especially when setting up the relevant infrastructure.

This is where our versatile FlexLED rope light scores as temporary lighting. In no time, the LED rope light is unrolled from the cable reel and immediately ready for use.

Product features

Our FlexLED double-sided LED light strip not only enables you to save energy when using temporary lighting installations but also an enormous amount of time as a result of the easy set-up and disassembly.

This LED light strip is covered by a durable PVC tube and guarantees absolute flexibility and an extremely high light output without casting shadows. The protection category of IP65 means that it can be used indoors and outdoors.

The LED light tube has a length of 25 m and is supplied ready for connection on a cable reel. Connection to the power supply is provided via the supplied connection cable. The FlexLED light strip is quickly and easily attached and can be operated up to a maximum length of 100 m.

Technical data

  • LED: LED strip double-sided (2×180 LEDs/m)
  • System performance: 325 W (13 W/m)
  • Light efficiency: 1'500 lm/m
  • Light colour: 3'000 K / 4'000K
  • Beam angles: 240° (120° per side)
  • Operating life: > 30'000 h
  • Protection category: IP65
  • Impact resistance: IK10
  • Operating temperature range: -25°C to +55°C
  • Weight: 6 kg
  • Dimensions (L×W): 16×8 mm
  • Length: 25 m (extendable to max. 100 m)
  • Connection cable: 1,5 m (2×1,5 mm² rubber cable with plug type 13)

FlexLED installation

Accessories

To further optimise the possible applications of our FlexLED light tube, we have added two new products to our range:

  • Power supply unit for flicker-free light: Essential for occupational safety, especially when working on machines with rotating parts.
  • Dimmer box: Enables brightness control, changes the lighting mood and helps to reduce light emissions.

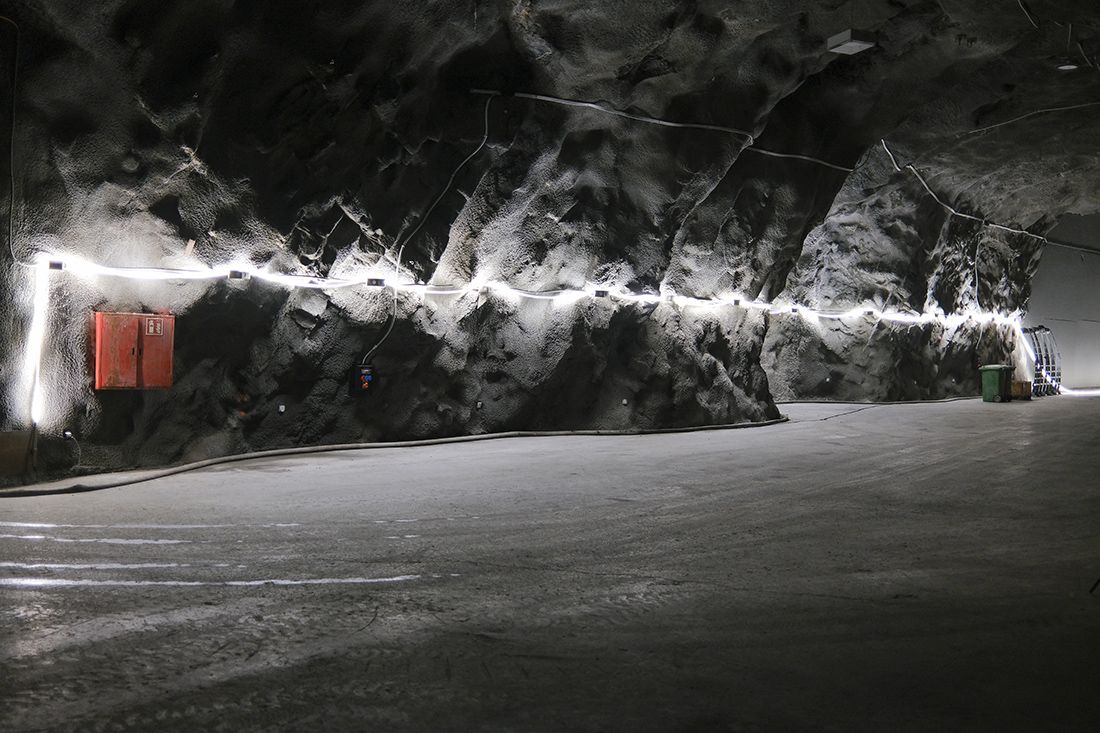

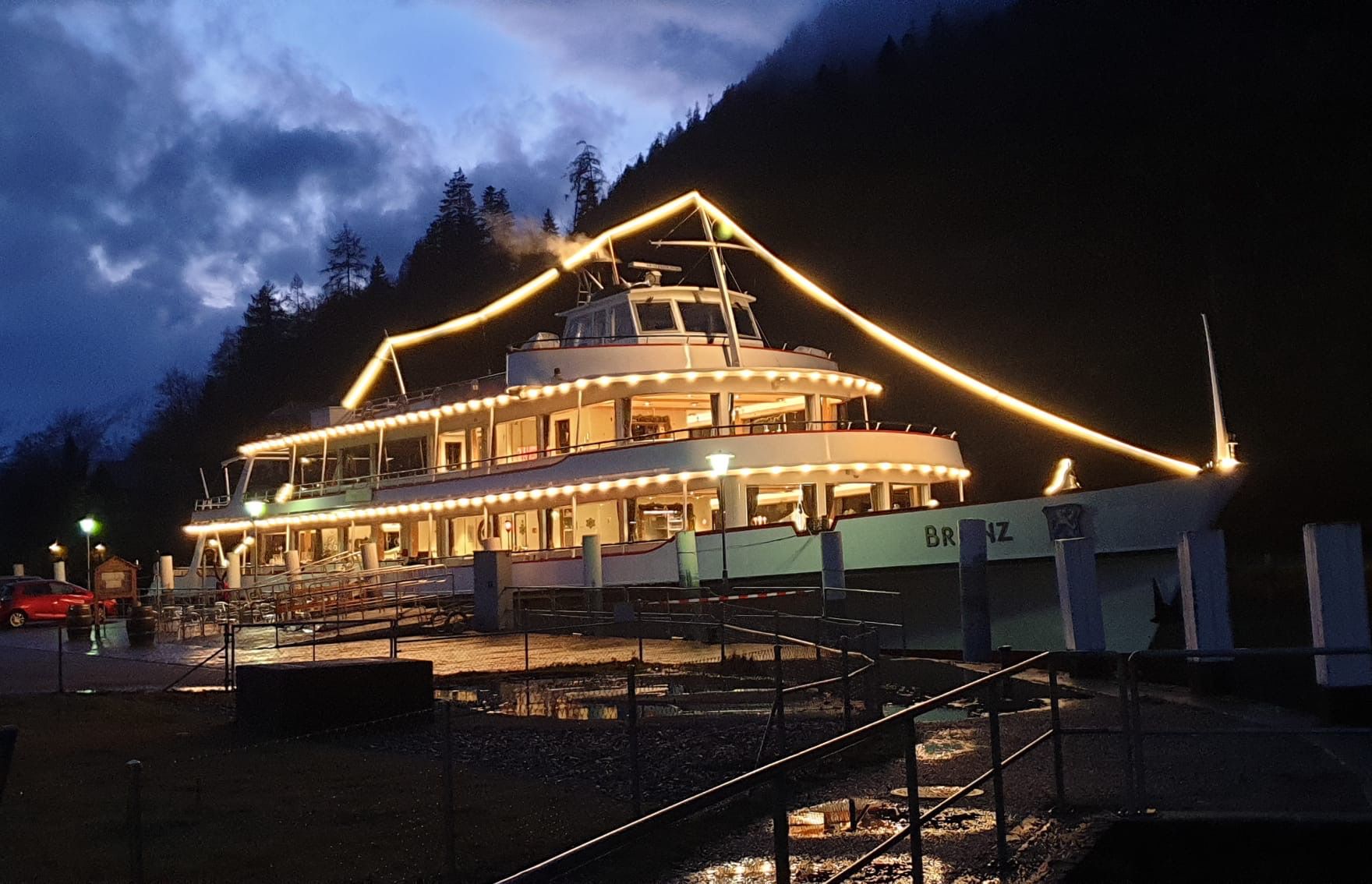

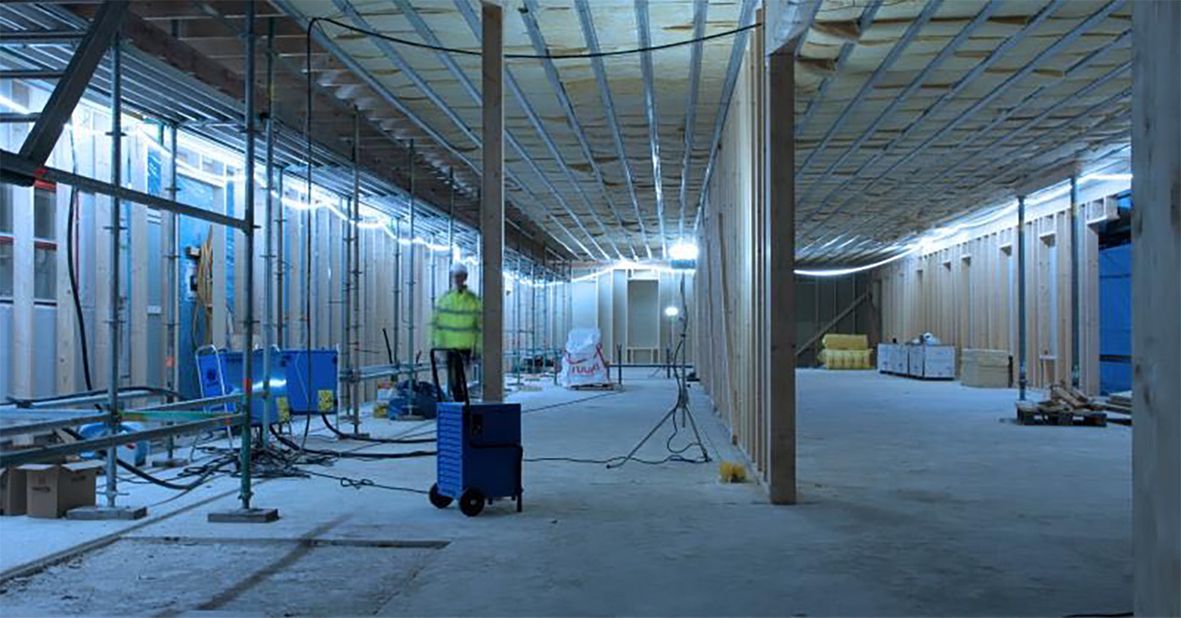

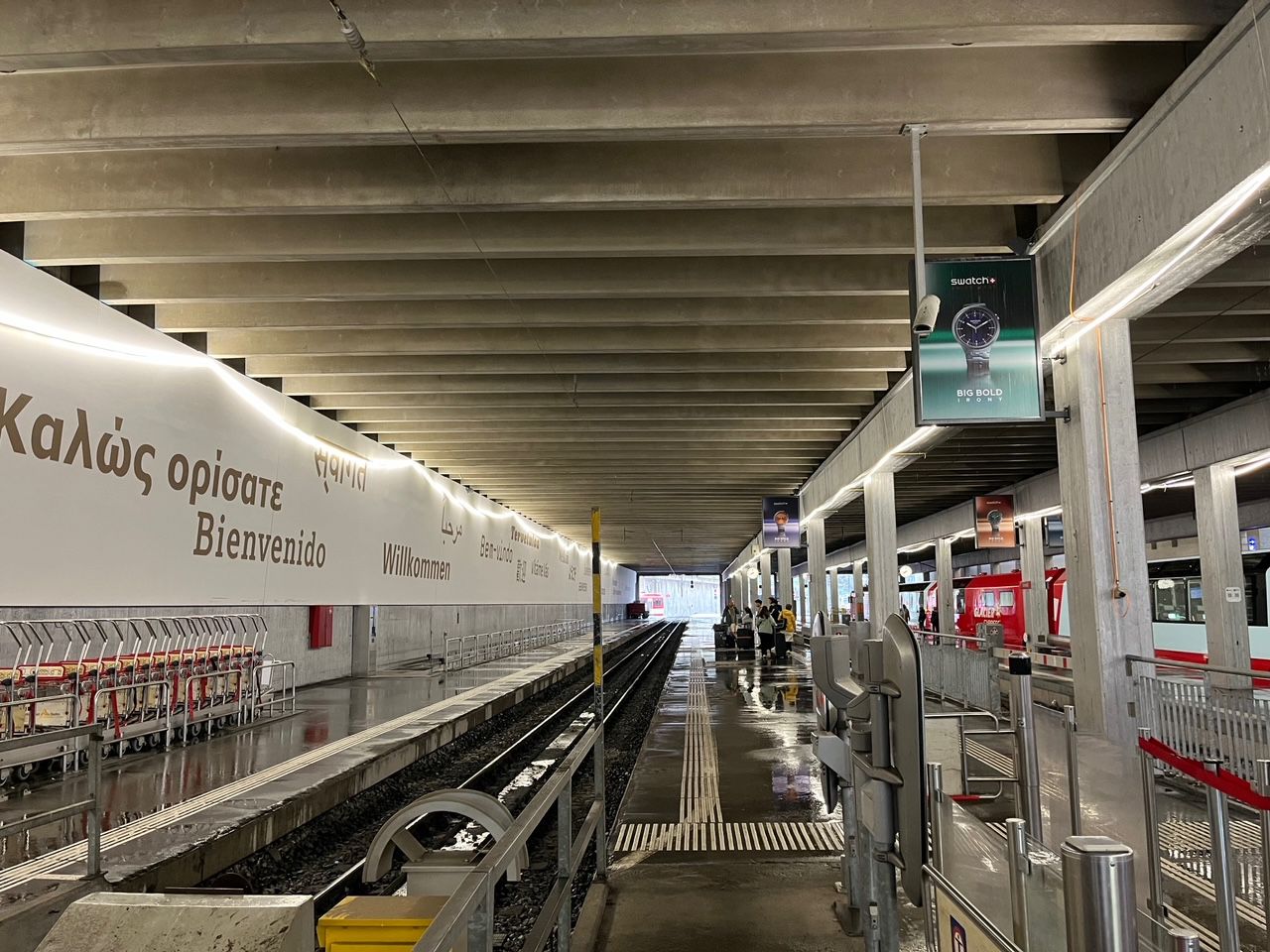

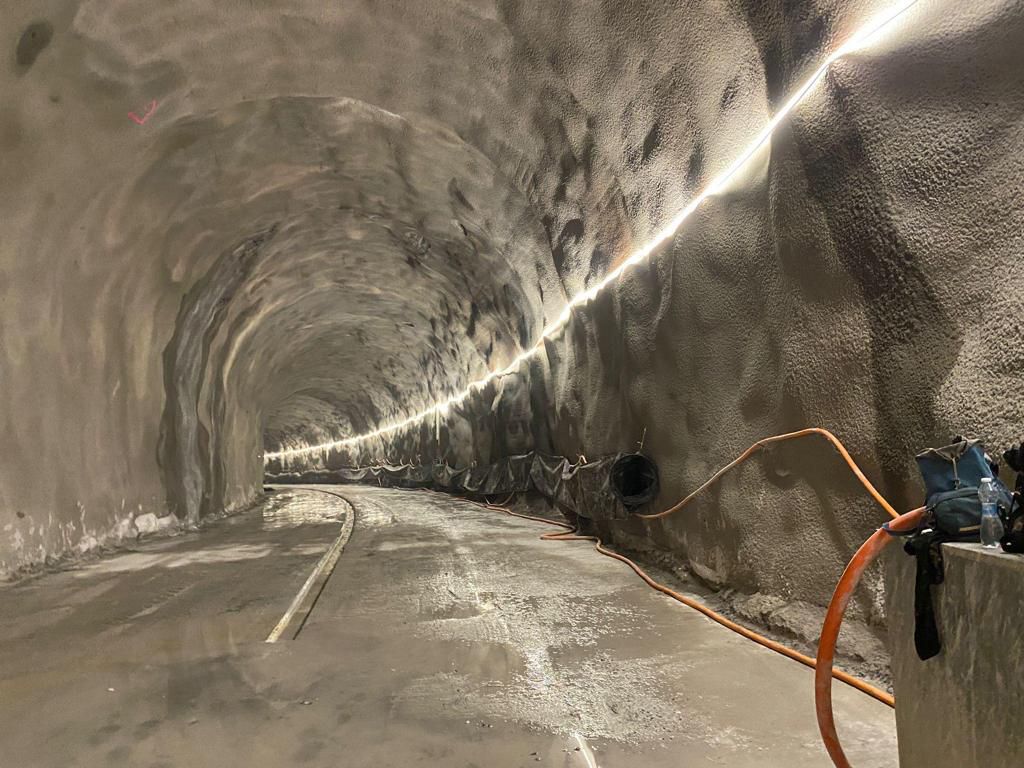

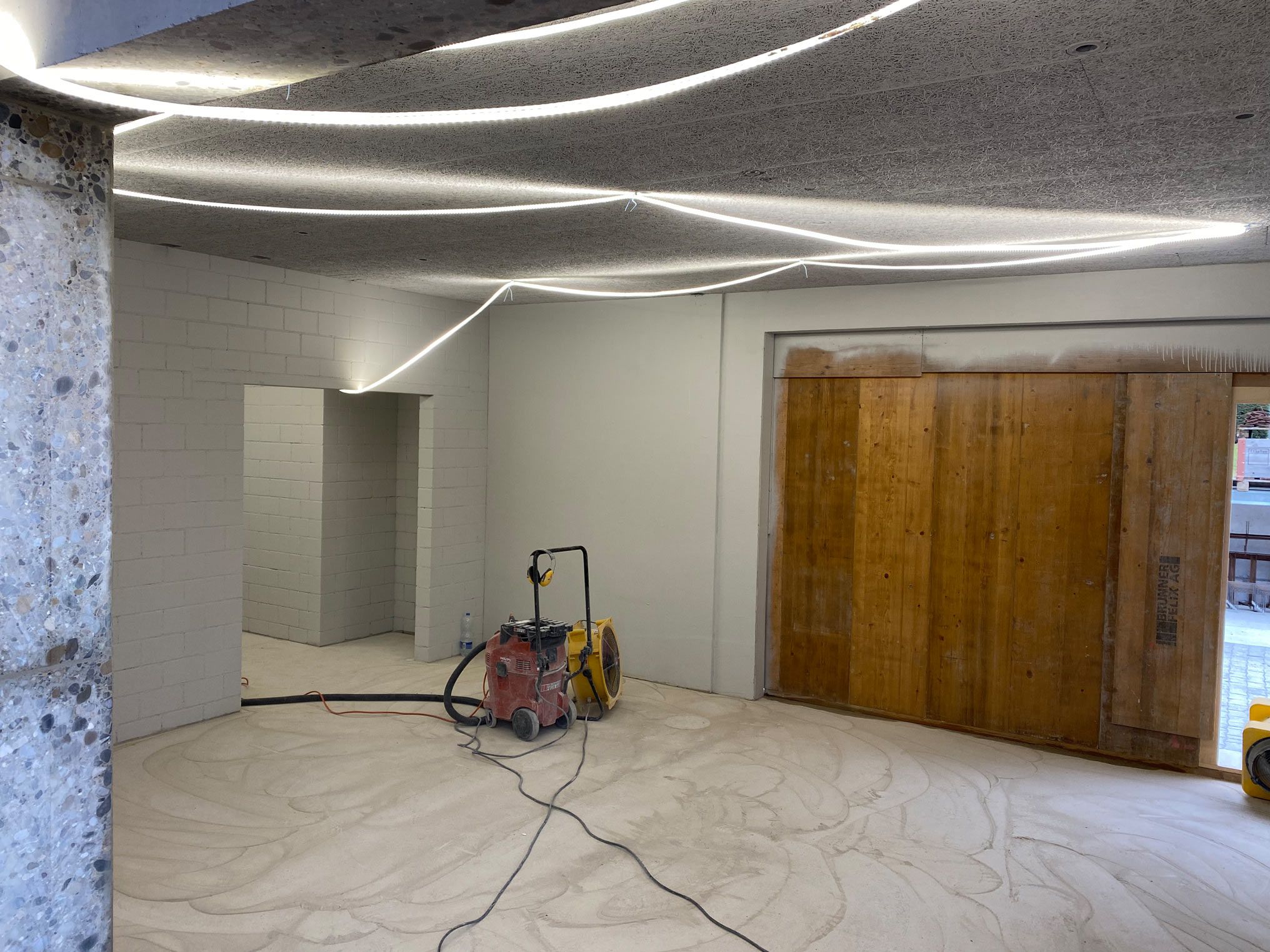

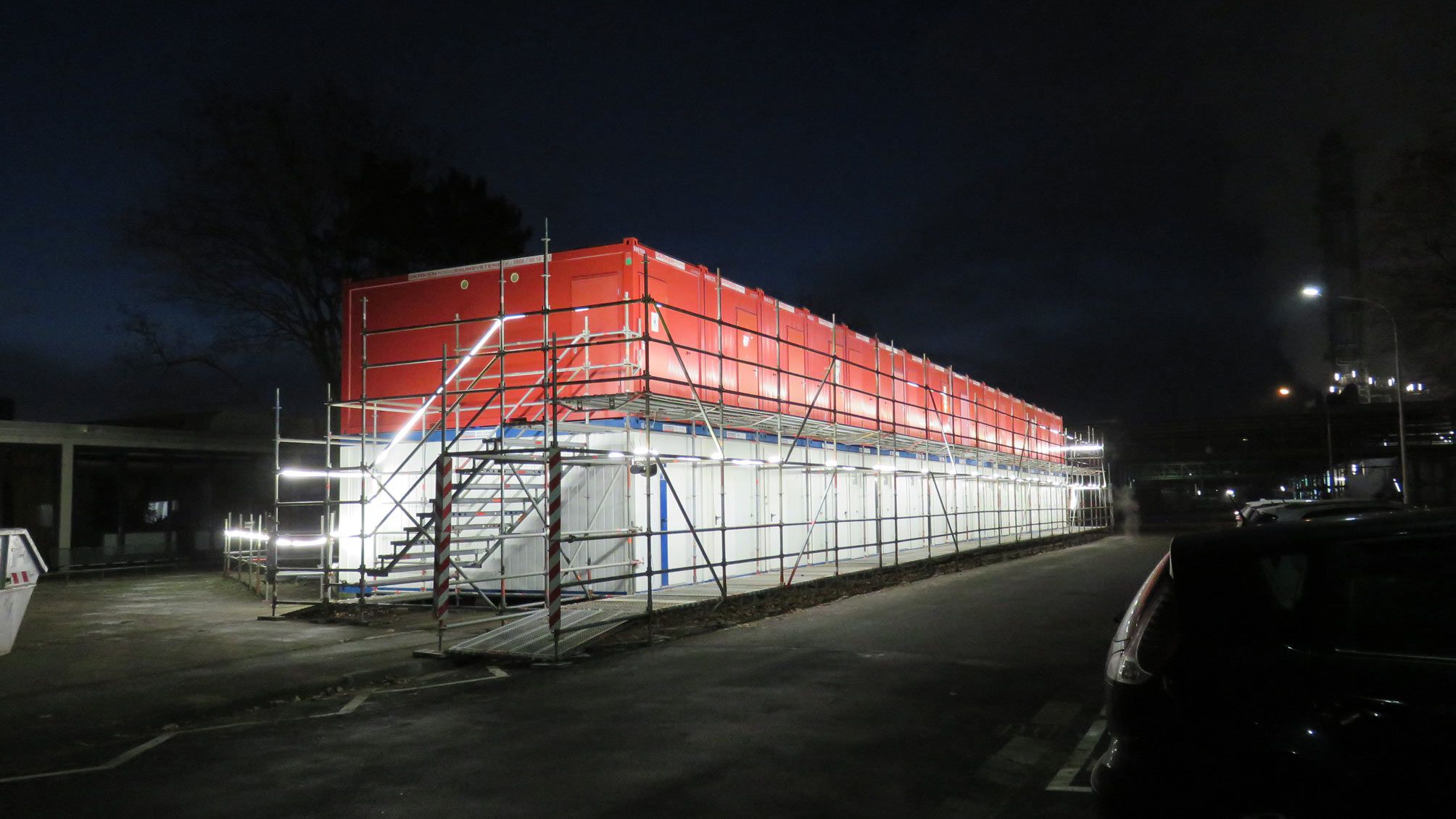

Impressions
