Power columns RONDO M and L

Maximum flexibility thanks to modular design

Functional and aesthetic

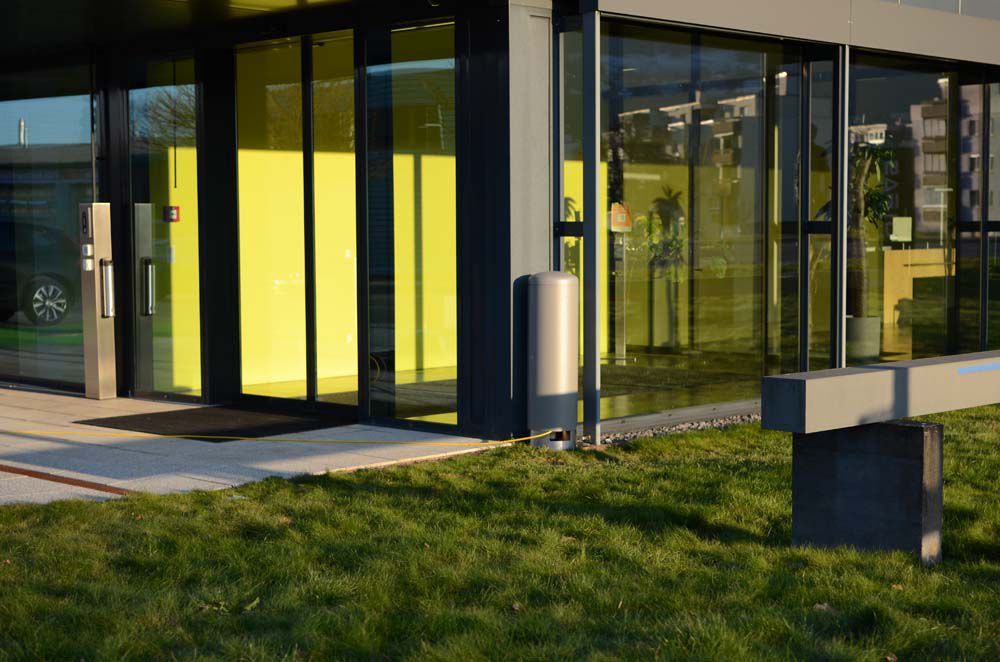

The elegant RONDO energy column provides easy access to electricity in various environments such as leisure centres, infrastructure operations or in industry. Easy to install, either on a concrete base or with an optional floor flange. Thanks to its modular design, the RONDO adapts perfectly to your individual requirements.

General / Operating principle

The RONDO is assembled on a concrete base provided on-site by the customer or on the optionally available floor flange. The RONDO can then be connected to the power supply and is thereby ready for operation.

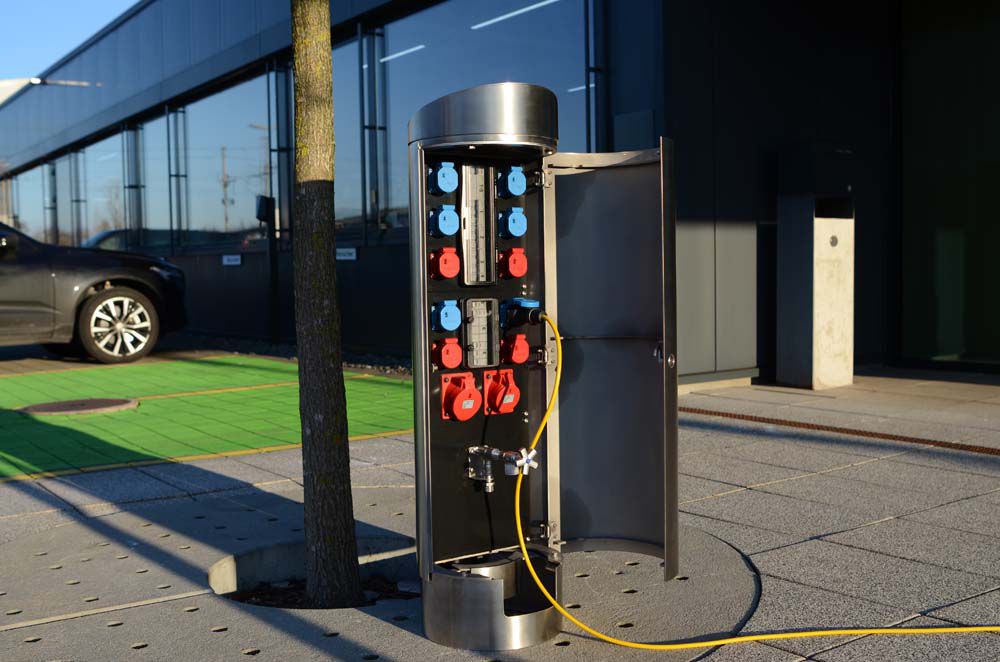

The insertion piece for the cable outlet can be lifted for operation, meaning that operation is also possible with the door closed. The RONDO M is completely wired up by GIFAS and delivered ready for connection.

Structure

The RONDO M consists of a robust, solid housing with a lockable door. Thanks to the modular design, the desired equipment can be installed. We are also happy to provide specific customer solutions.

Floor flange optionally

The bottom flange is made of stainless steel V2A, 1.4301, with anti-rotation protection. The anchoring is used if a concrete base for the RONDO assembly has not been provided on-site by the customer. The excavation work and the professional assembly of the floor flange in accordance with the standards have to be carried out on site.

Structure

1. Column

material: stainless steel V2A, 1.4301
surface / color: V2A polished, RAL 9007 or painted according to customer requirements
cover: slanted, convex (round)

2. Cable outlet – insertion piece

Cable outlet flaps removable

3. Holder for cable outlet flap

4. Power distribution

Equipped to customer requirements

5. water and air connection

Equipped to customer requirements

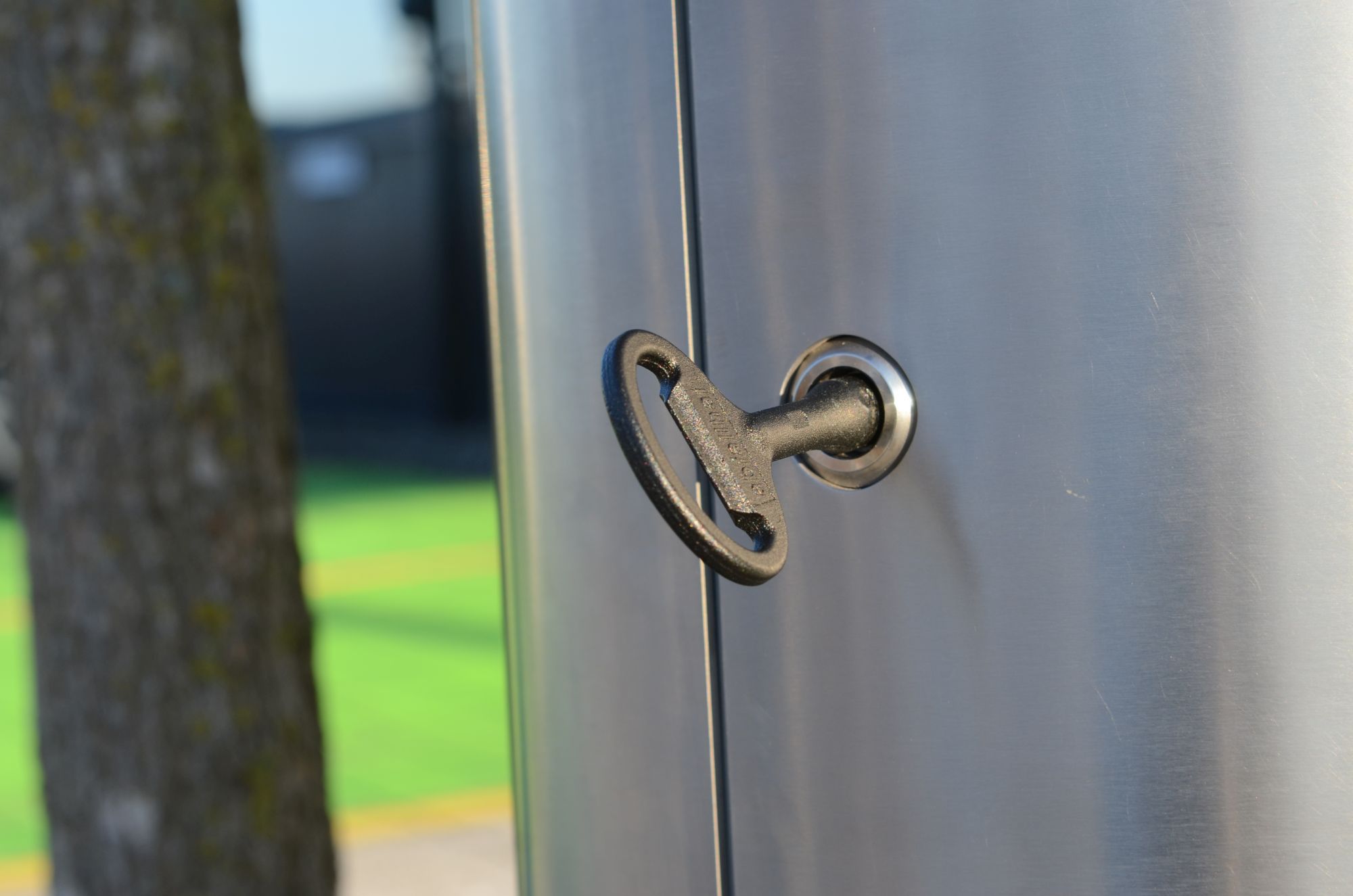

6. Standard lock

Triangle lock 8 mm (Other locks optionally)

7. Floor flange (optional)

ideal for installation in solid base (e.g. concrete)
4×M12×27 mm

Self-locking for more comfort and security

Our RONDO energy-saving door is now available with a practical self-locking mechanism. Thanks to a built-in tension spring in the lock tongue, the door can be locked simply by pushing it shut - no need for a key. This increases user-friendliness and saves time in everyday life.

Upgradeable: Existing RONDO columns can also be equipped with the new door lock.
