Item No: 800069

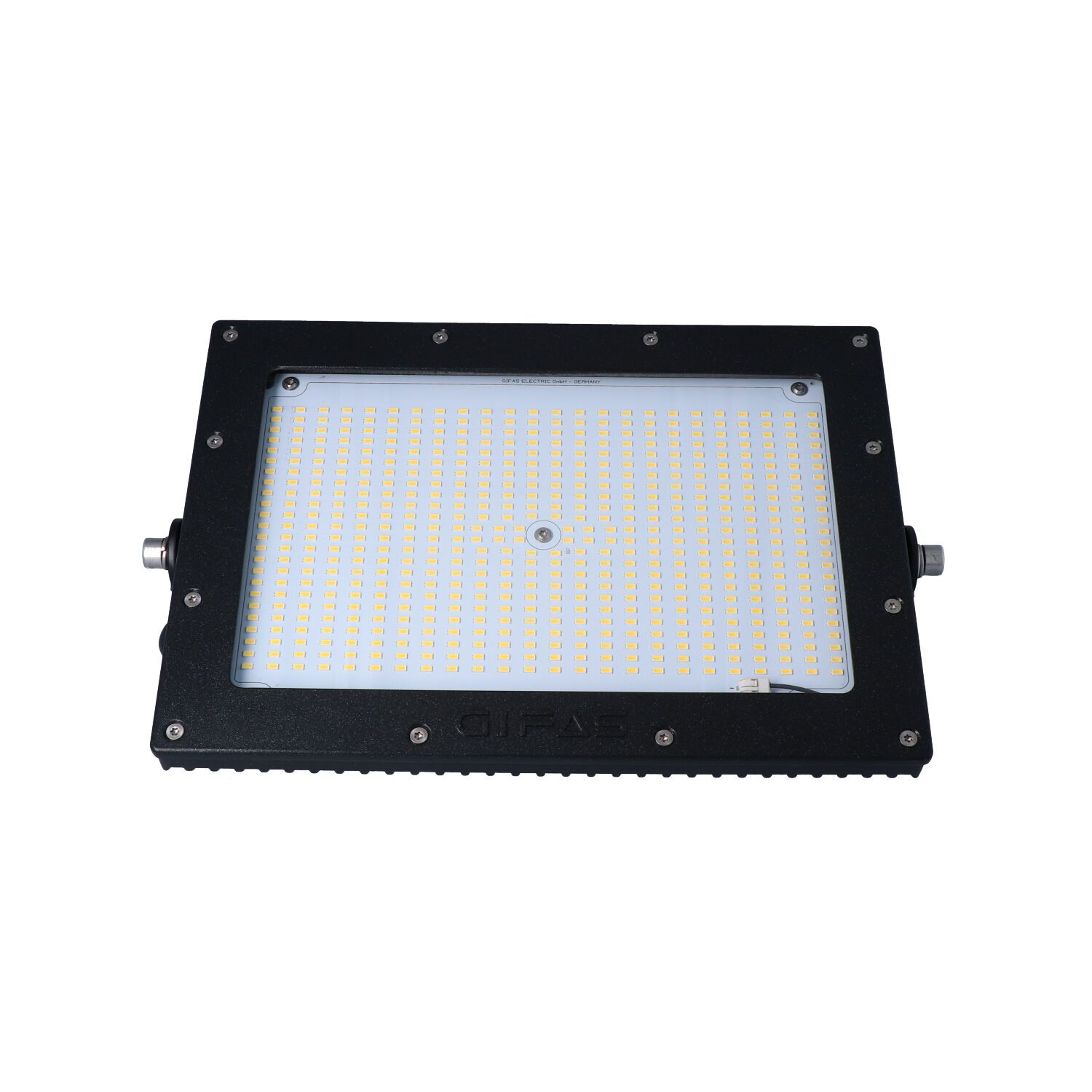

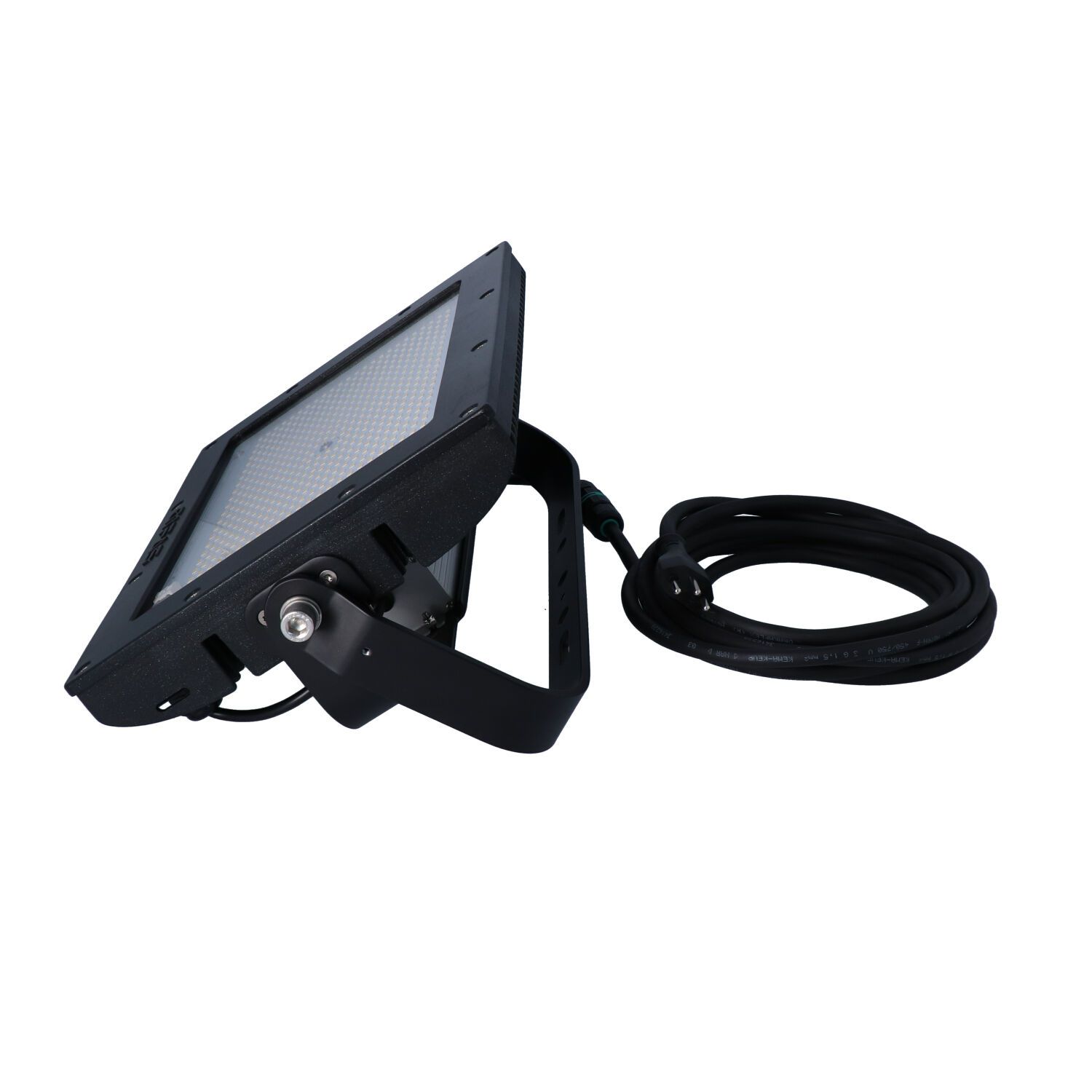

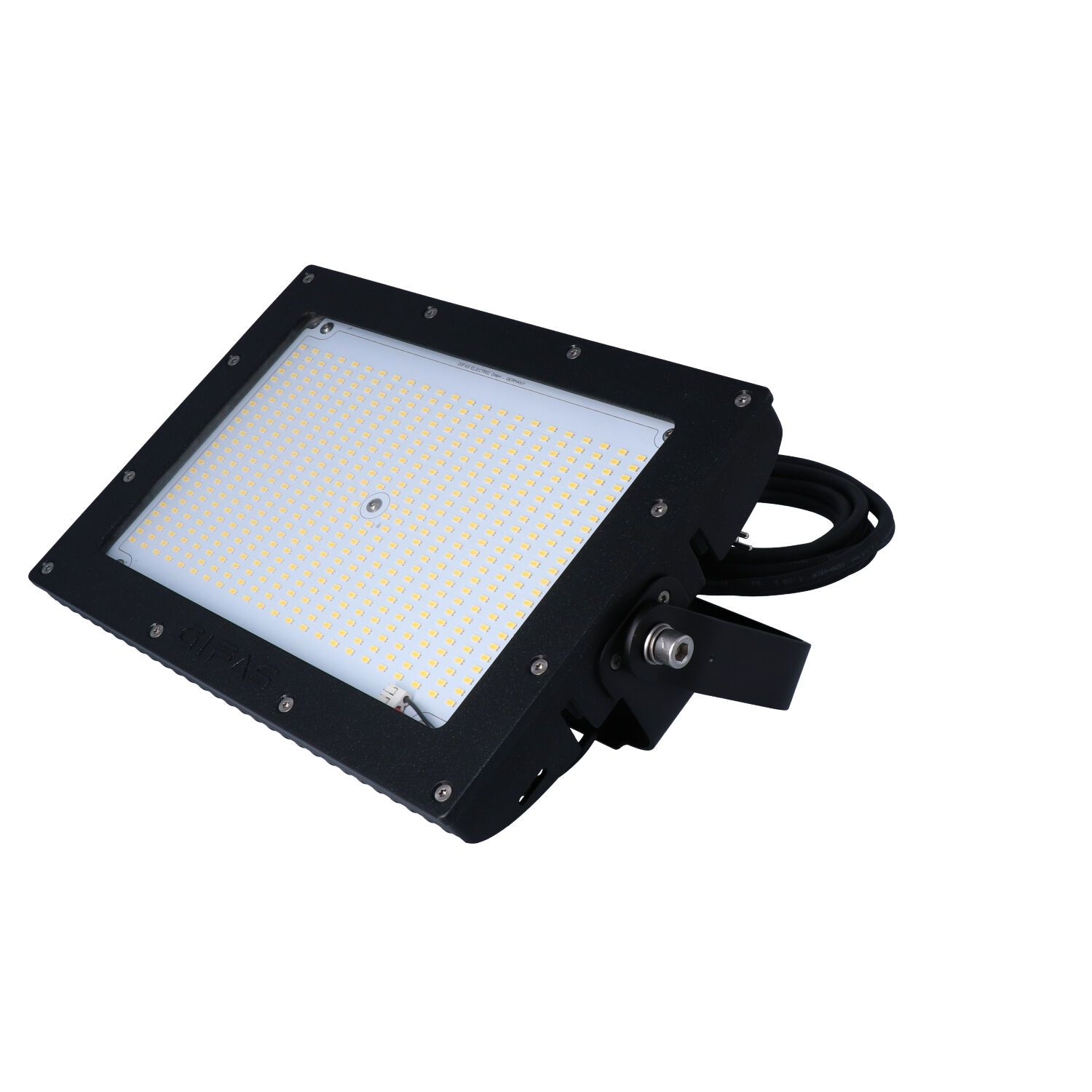

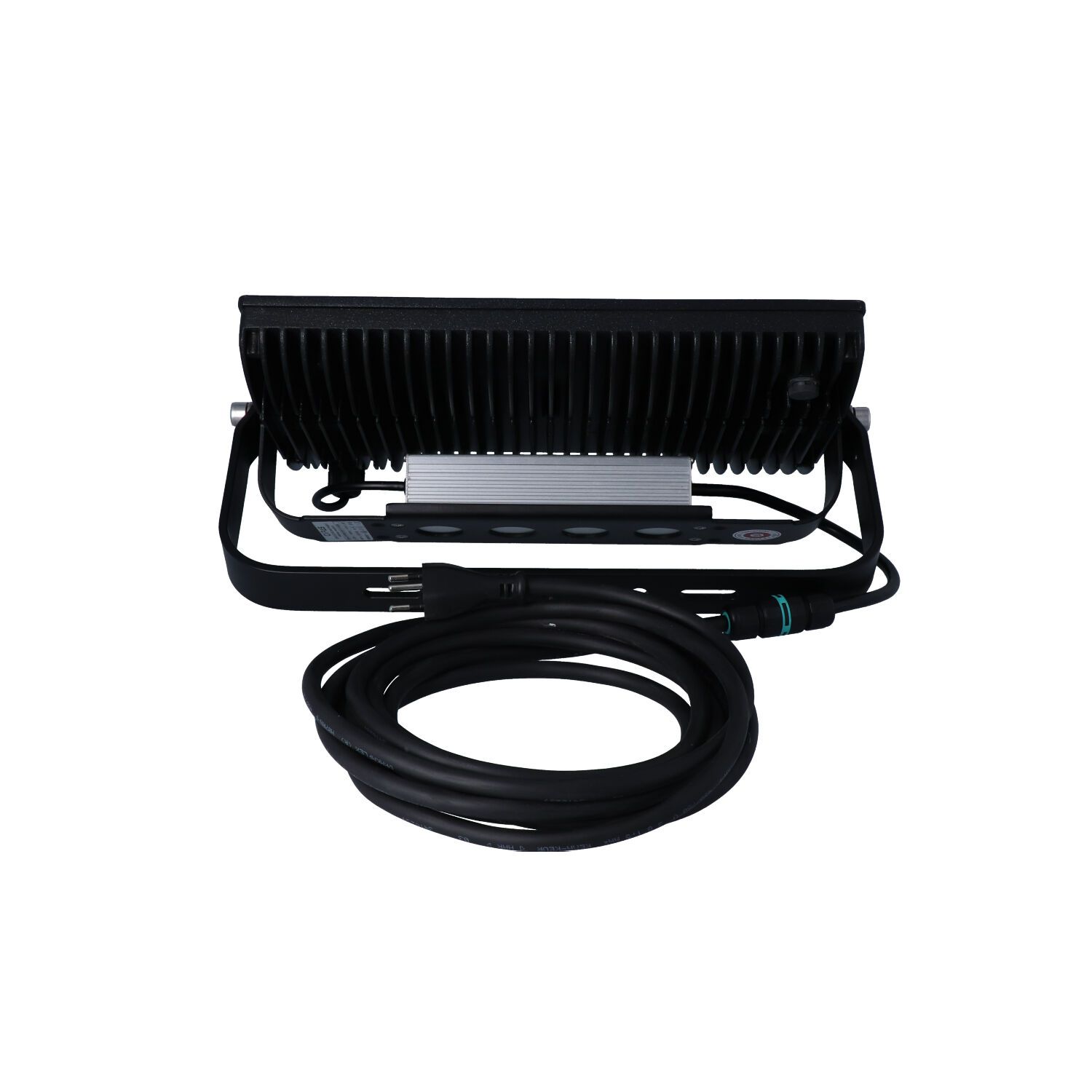

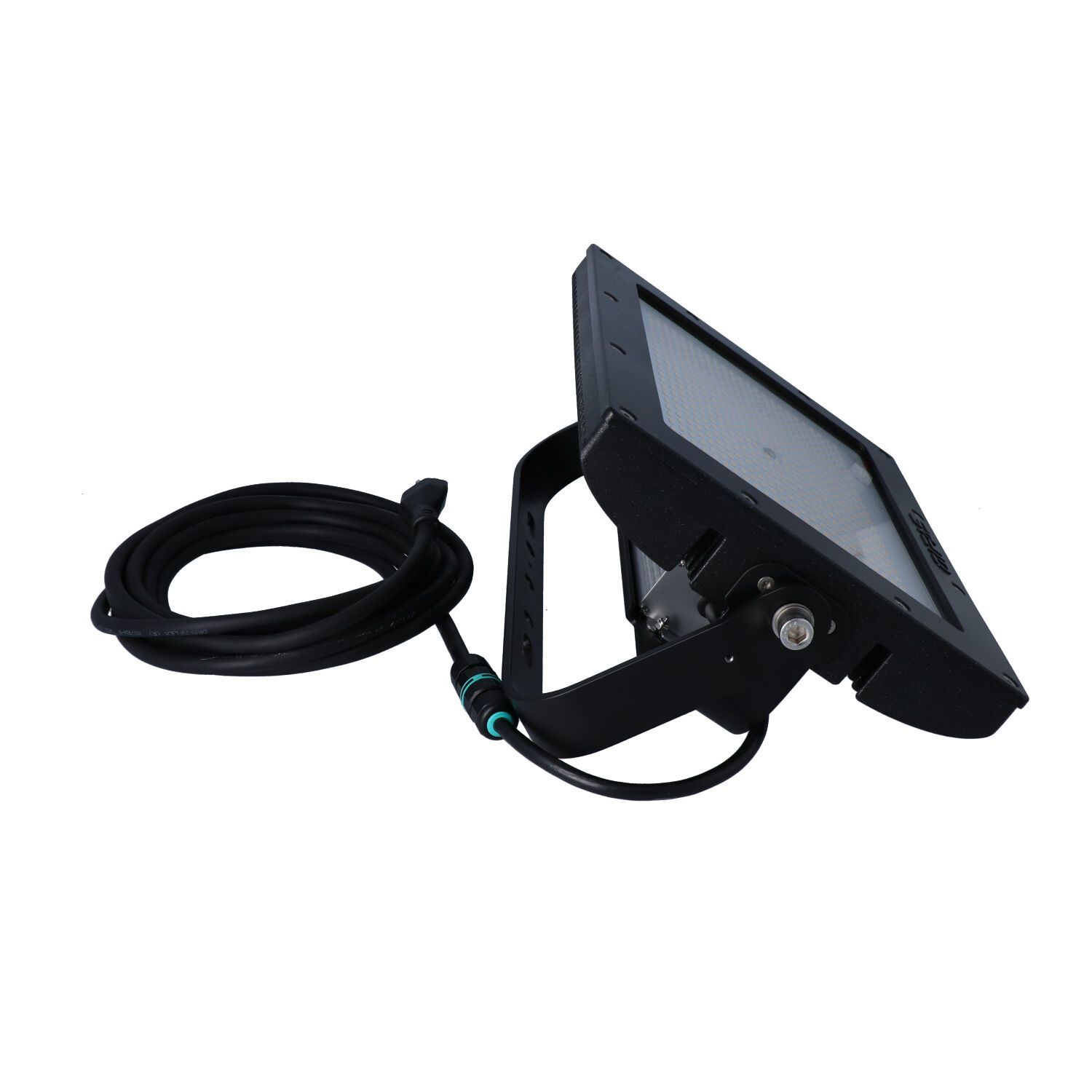

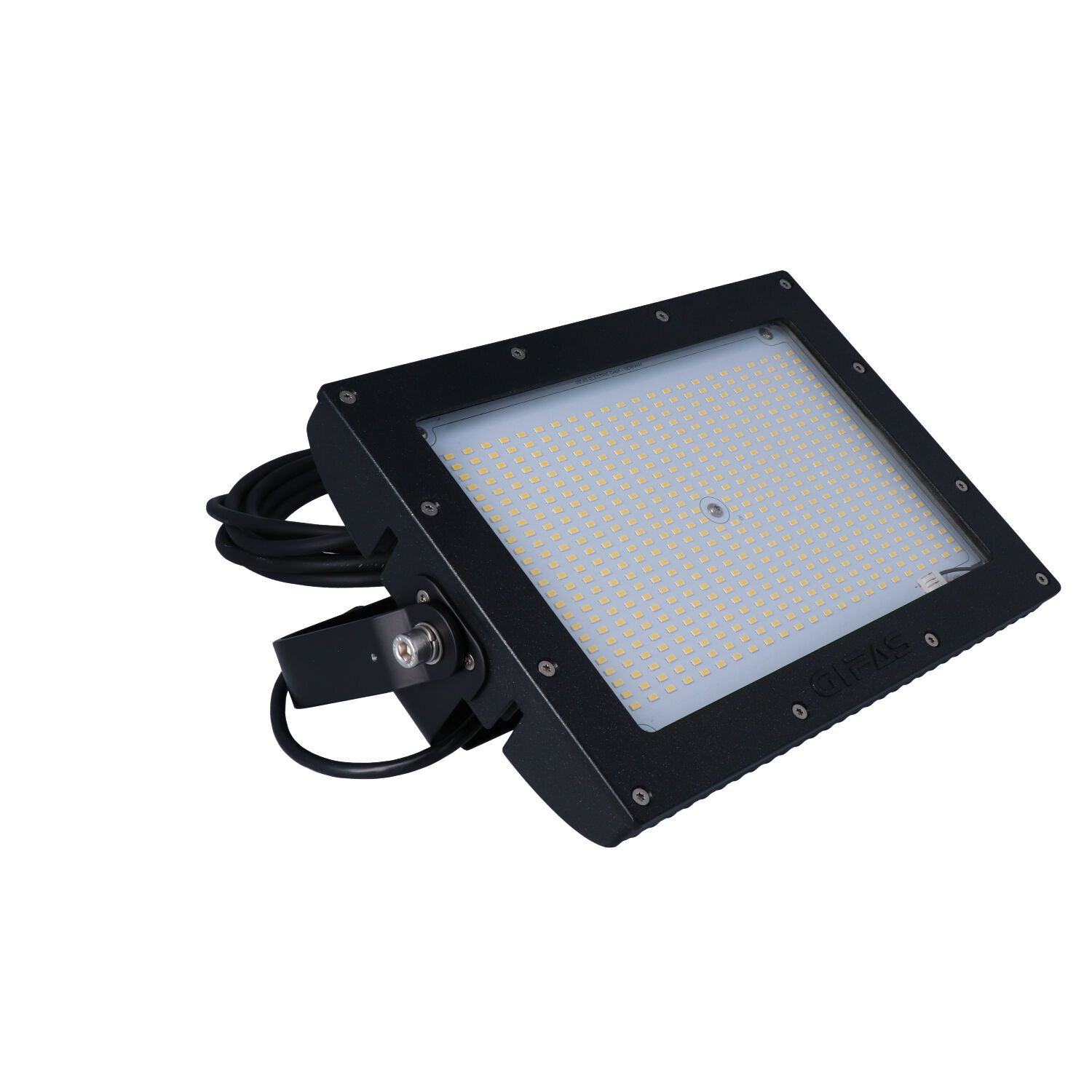

Floodlight AlphaLUXX 120, 5'000K,

20-48VDC, toughened safety glass, + TeeTube (for motor vehicle sector)

Please log in to be able to use the shopping cart and then complete orders.

Technical data

Protection rating: IP65
Width: 389 mm
Height: 252 mm
Depth: 106.5 mm
Weight: 7 kg
Case material: die-cast aluminium PTFE-coated
Case colour: black
Temperature range: -30°C to +50°C
Voltage: 20-48 VDC
Colour temperature: 5000 K
Protection class: I
Impact resistance: IK10 (for models with PC cover)
Light output: 18636 lm
Performance: 128 W
Cable: H07RN-F
Connector cable: 5 m
Operating life LED: [L70/B10] >80'000h
Model: for the automotive sector
Connector cable cross-section: 2 x 2.5
CRI Index: Ra>80
surface temperature: +90°C (suitable for use in industrial premises with fire hazards), D rating label
Certification: CE, suitable for IFS (International Featured Standard)
Cover: 5mm toughened safety glass
Lighting source: SMD-LEDs
Connector cable plug: without
Glass: clear
Warranty: 5 Jahre/years/ans/anni
