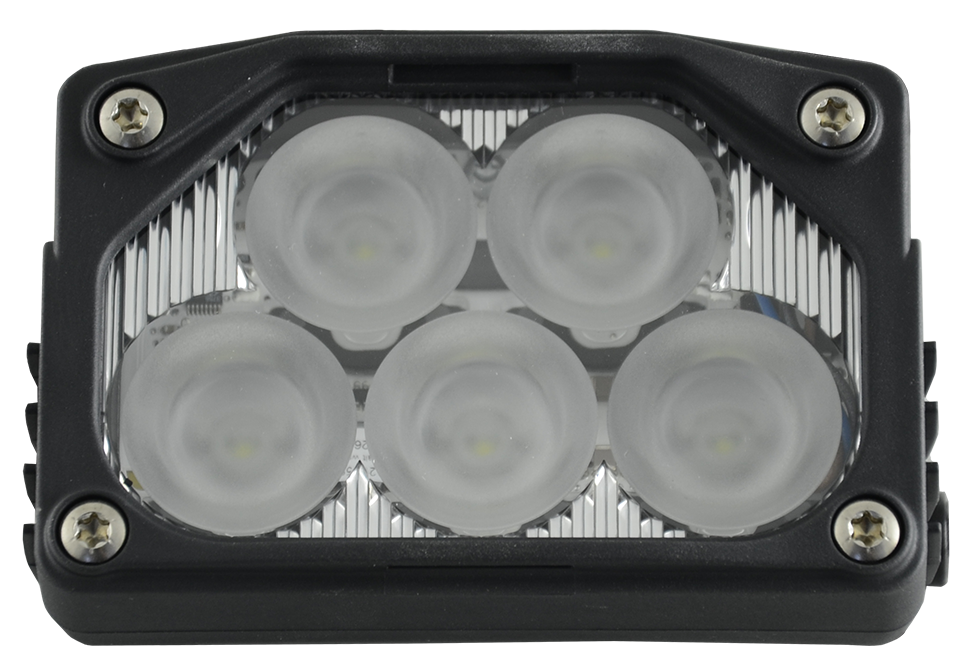

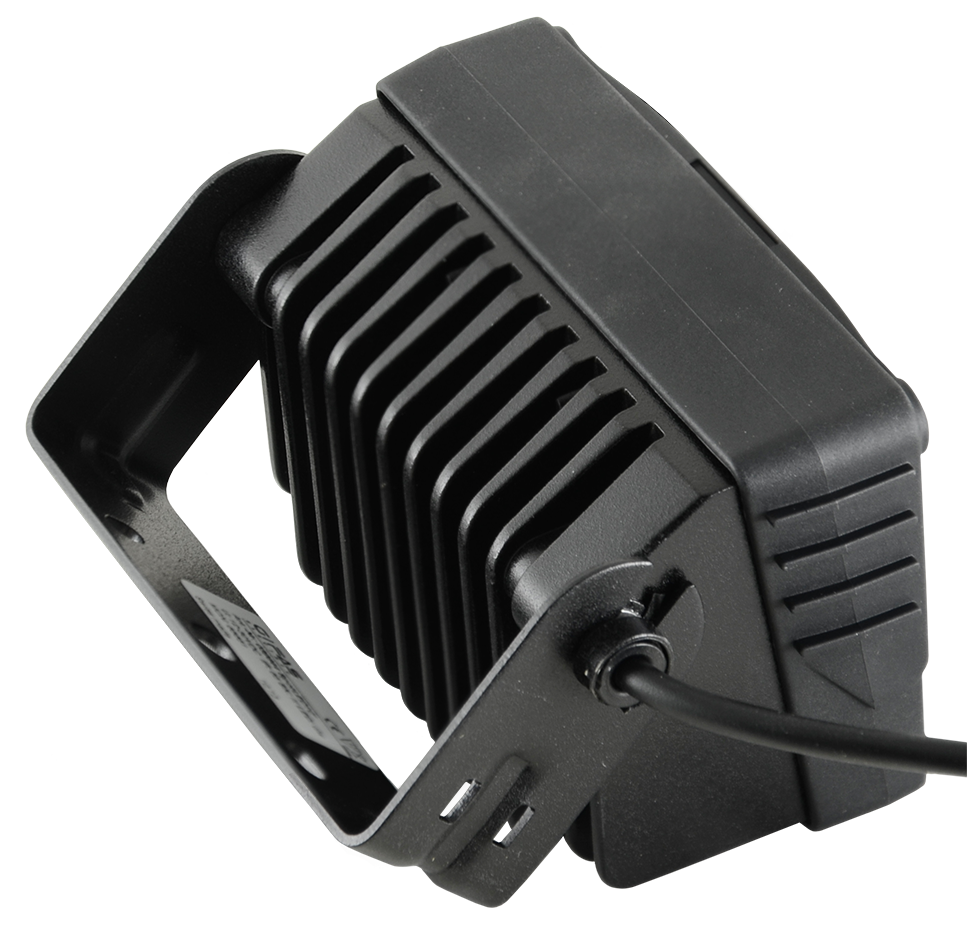

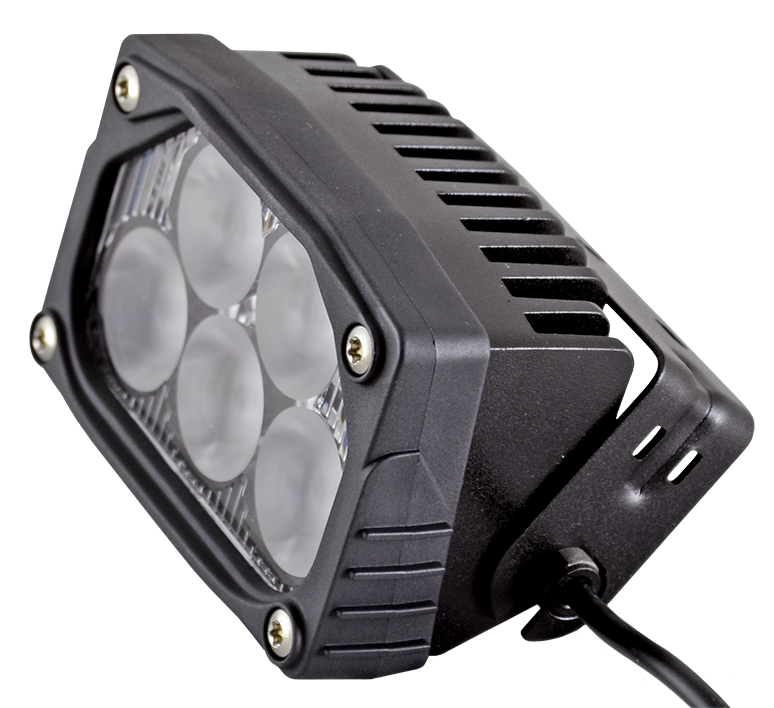

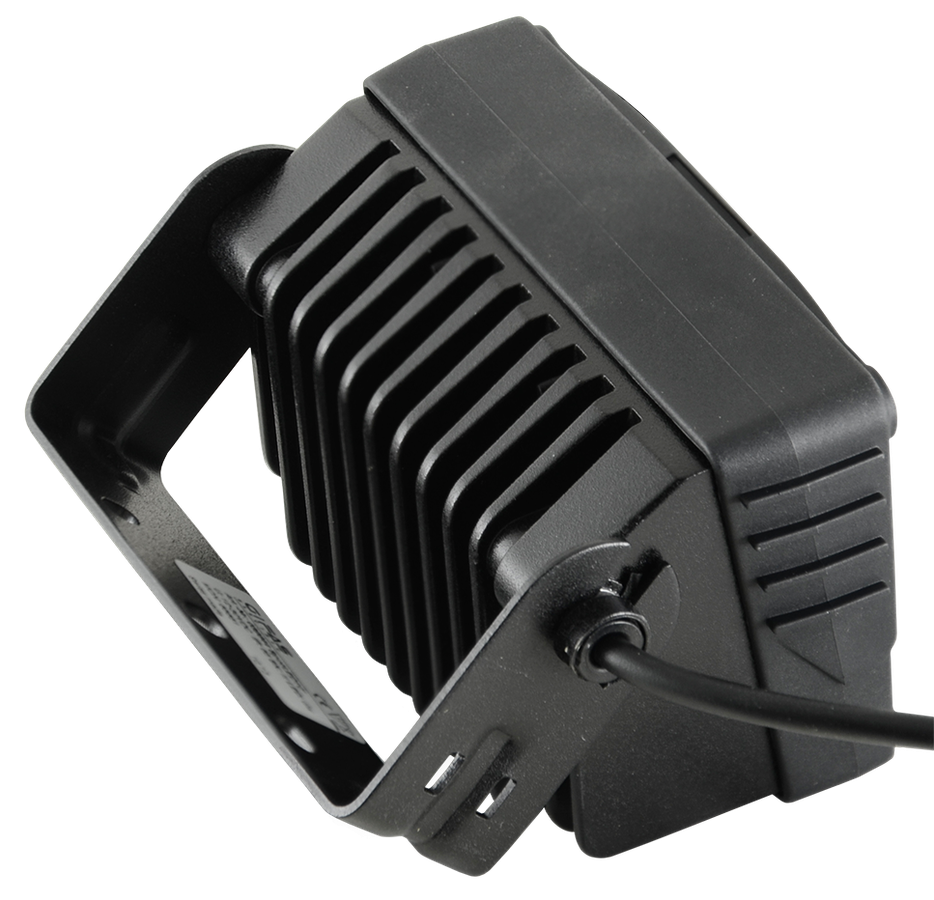

SpotLED 24 black, 3000K, Medium

Technical data

Input voltage

12-30VDC

Power consumption

500mA@24VDC, 950mA@12VDC

Light output

750 lm

Performance

10 W

Colour temperature

3000 K

Abstrahlwinkel

Medium

Protection rating

IP67

Protection class

III

surface temperature

max. +55°C

Temperature range

-30°C to +45°C

Case material

aluminum housing

Case colour

black

Optics

5x38°

Width

108 mm

Height

62 mm

Depth

81.5 mm

Weight

0.35 kg

Connector cable

5 m

Connector cable cross-section

3 x 0.25mm²

Connector cable plug

without

Downloads

104970 SpotLED 24 3000K 5x38° PC k Medium ( .ldt )

Accessories

Item No: 038197

Rod T-profile V2A 505mm, for SpotLED

Item No: 100346

Plug-in power pack with 1,8m cable 2x0.75mm²,

black, straight connector, 230VAC/18VDC 50Hz, 1200mA

Item No: 101069

Magnetic clamp, rubberized, rectangular

43x31x6mm, force of 110 N, 2xM4 thread

Item No: 106563

Rod round V2A Ø30x600mm, for SpotLED

incl. installation material

Show all

Spare parts

Item No: 152996

Spare glass (assembly),

polycarbonate transparent
