Item No: 860661

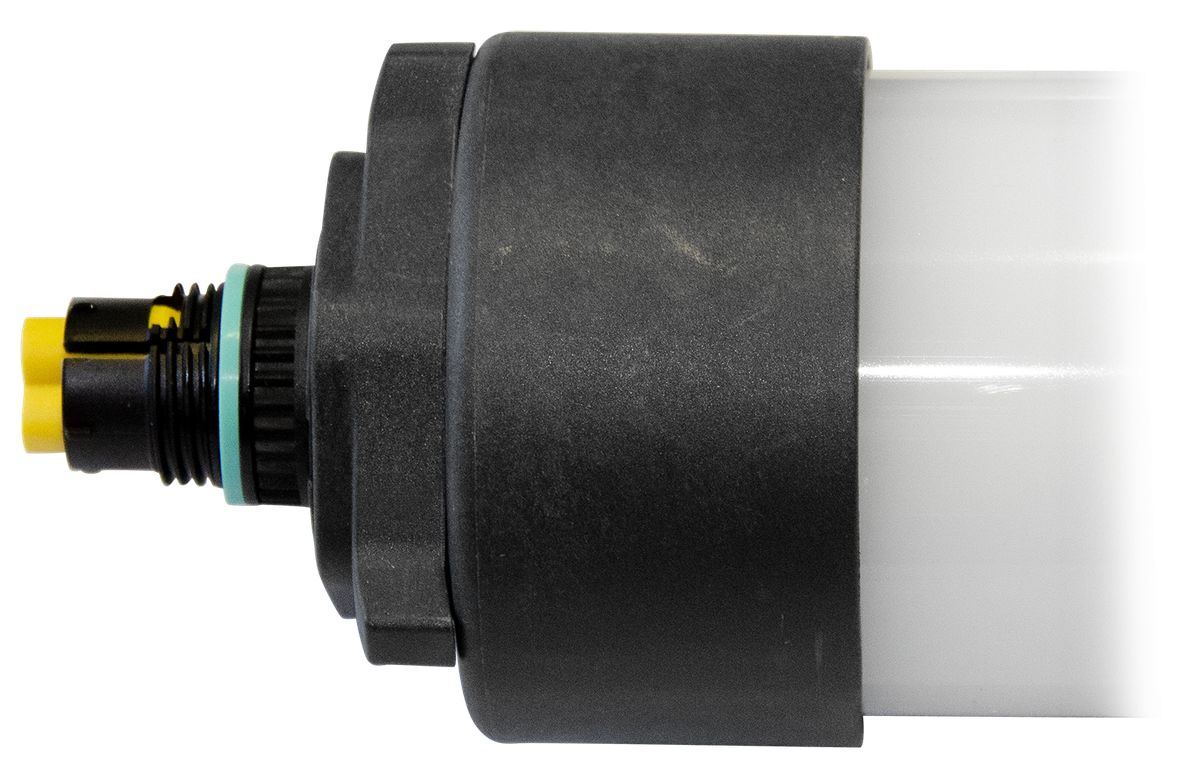

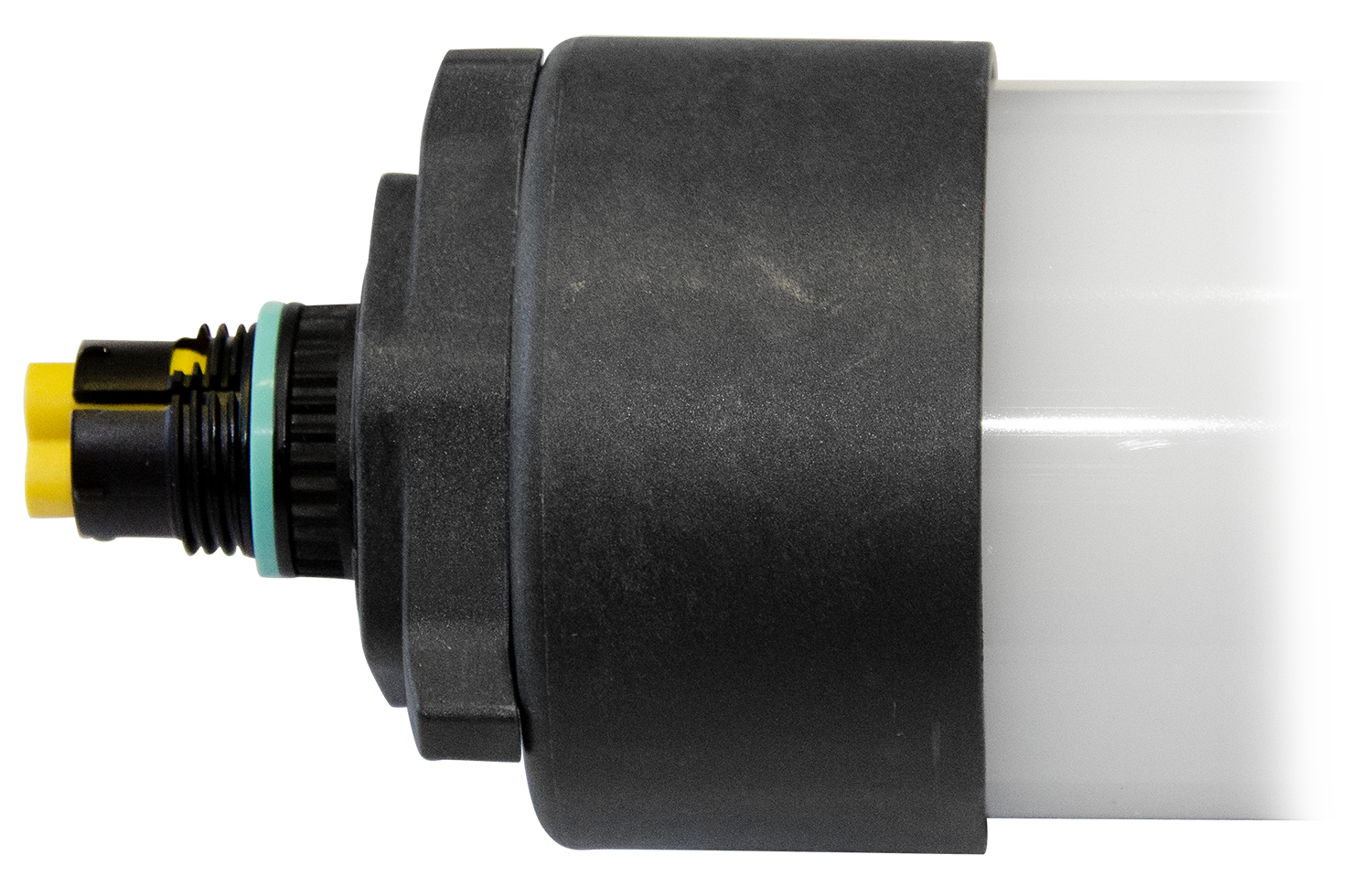

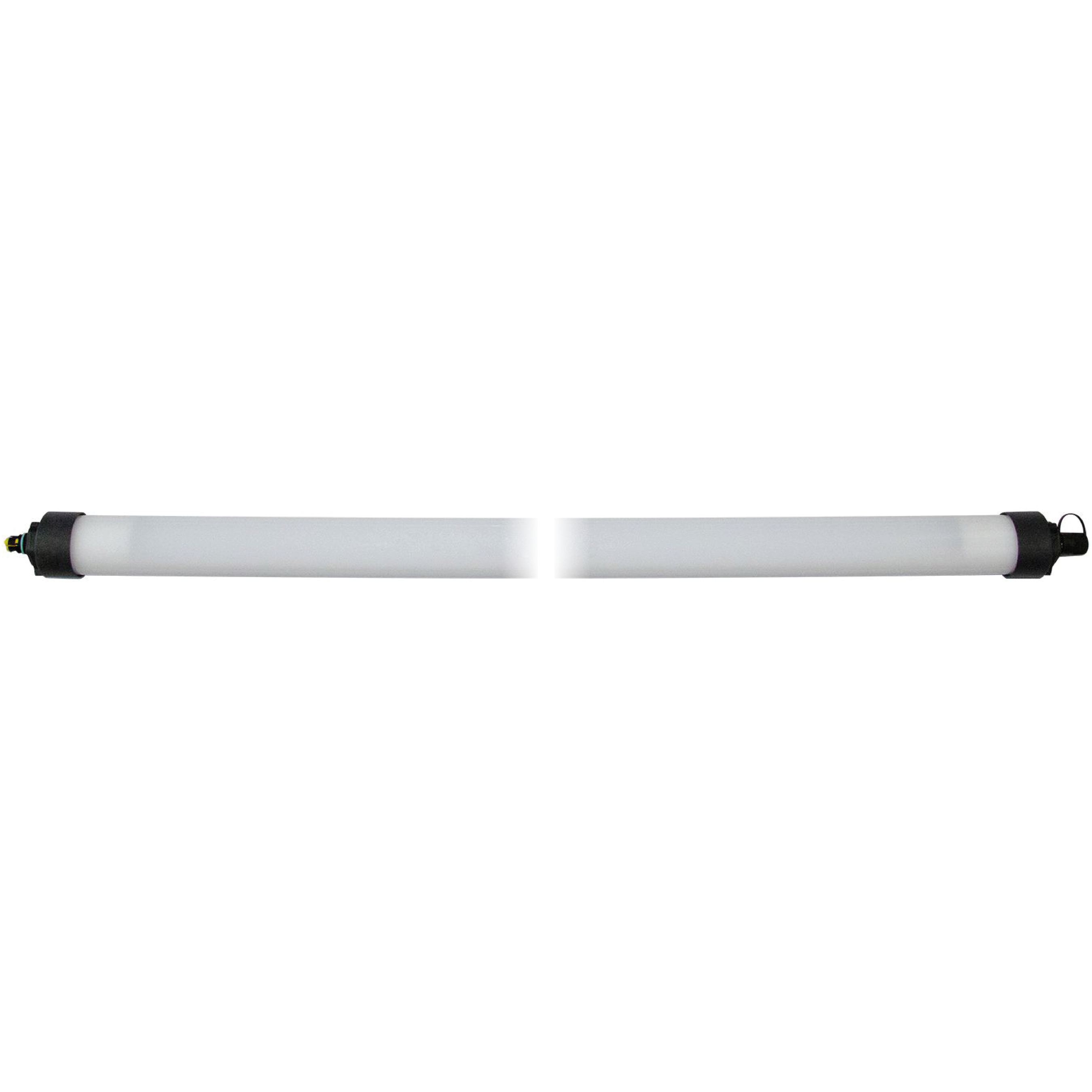

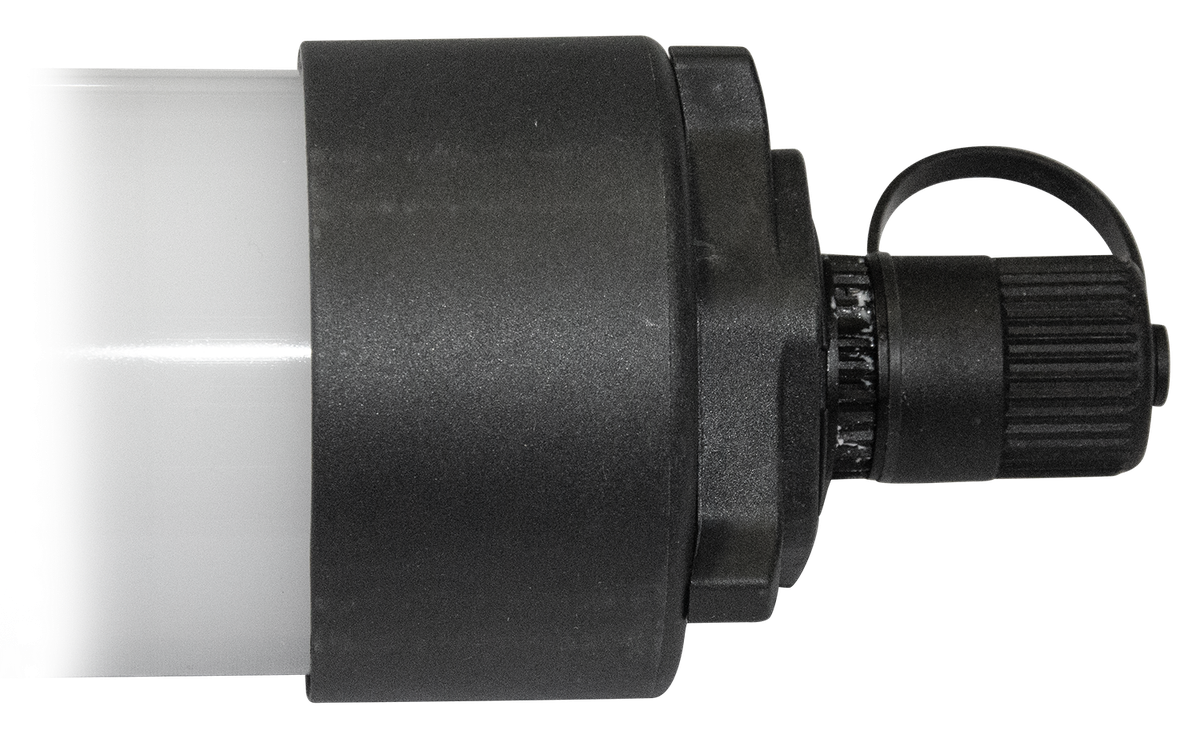

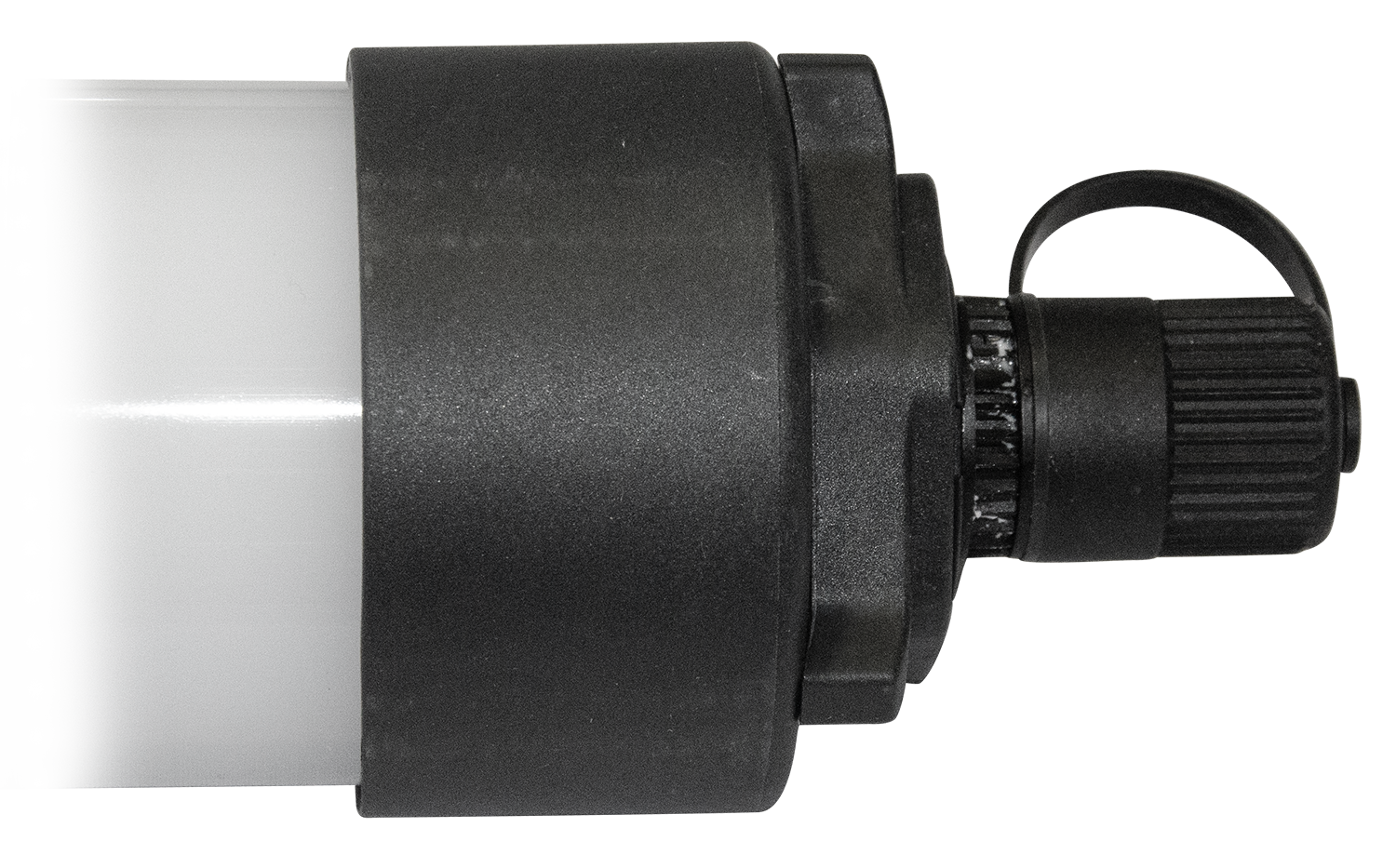

StreamLED 2 20, 20W/230VAC, IP66, 5'000K, LED-Print,

PMMA acrylic glass satinised, length 786mm, incl. plug and connector 2P, excl. accessories

Please log in to be able to use the shopping cart and then complete orders.

Log in

Technical data

Protection rating
IP66
Length
786 mm
Weight
2 kg
Input voltage
198-264VAC (176-264VDC)
Temperature range
-25°C to +40°C
Voltage
230VAC
Colour temperature
5000 K
Protection class
II
Light output
2121 lm
Performance
20 W
Operating life LED
L70 B10 >50'000h
CRI Index
Ra>80
Beam angles
120°
Impact resistance
IK08
Pipe diameter
70 mm
Dimmable
no
Material housing / tube
plexiglass PMMA
Warranty
5 Jahre/years/ans/anni

Downloads

Dimensional drawing ( .pdf ) 860661 StreamLED2 20 5000K 120° PC s ( .LDT )
